NSN 5310-00-141-1838
Part Details | SHEET SPRING NUT
5310-00-141-1838 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: A180710Z1, A1807-10Z1, 5310-00-141-1838, 00-141-1838, 5310001411838, 001411838
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-141-1838 | 01865 ( NUT, SHEET SPRING ) |

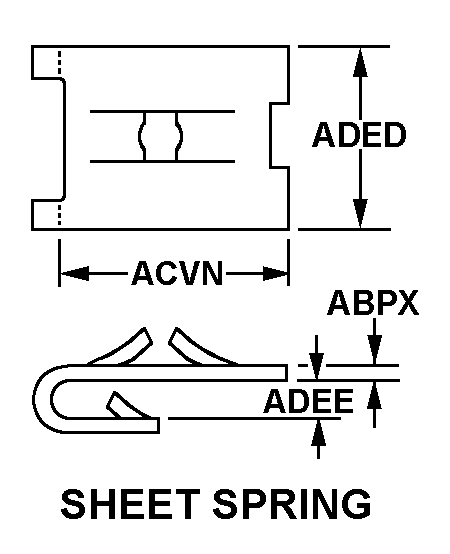

REFERENCE DRAWINGS & PICTURES
SHEET SPRING
Cross Reference | NSN 5310-00-141-1838
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A1807-10Z1 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5310-00-141-1838
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.190 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.026 INCHES MINIMUM AND 0.036 INCHES MAXIMUM |
| NUT LENGTH | 0.620 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| NUT WIDTH | 0.620 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |
| PANEL THICKNESS | 0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
