NSN 5310-00-141-1846
Part Details | NUT STRIP
5310-00-141-1846 A fastening device of rigid or semirigid material of various shapes and lengths having two or more apertures with lugs or prongs; threaded holes; or nuts. The apertures, threaded holes or nuts may be of any predetermined spacing.
Alternate Parts: 10538, C60676321, C6067-632-1, 5310-00-141-1846, 00-141-1846, 5310001411846, 001411846
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-141-1846 | 16009 ( NUT STRIP ) |

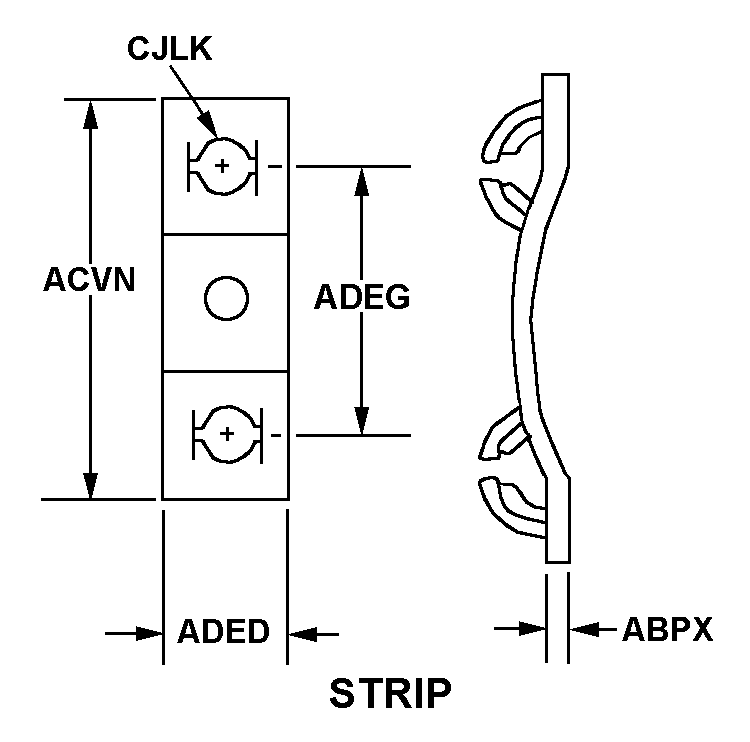

REFERENCE DRAWINGS & PICTURES
STRIP
Cross Reference | NSN 5310-00-141-1846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10538 | 82423 | KLEINSCHMIDT INC |
| C6067-632-1 | 78553 | TINNERMAN PALNUT ENGINEEREDPRODUCTS, INC. |
Technical Data | NSN 5310-00-141-1846
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.138 INCHES NOMINAL |
| NUT STYLE | STRIP |
| MATERIAL THICKNESS | 0.012 INCHES MINIMUM AND 0.022 INCHES MAXIMUM |
| NUT LENGTH | 1.360 INCHES MINIMUM AND 1.390 INCHES MAXIMUM |
| NUT WIDTH | 0.370 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| APERTURE CENTER TO CENTER DISTANCE | 0.750 INCHES NOMINAL |
