NSN 5310-00-142-2449
Part Details | INTERNAL WRENCHING PLAIN NUT
5310-00-142-2449 A cylindrical-shaped nut, the end opposite the bearing surface being designed with an internal socket or splines for use with an inserted wrench.
Alternate Parts: 2040121061, 204-012-106-1, 204012106001, 204-012-106-001, 2040121061, 204-012-106-1, 2040121061, 204-012-106-1, 2040121061, 204-012-106-1, 5310-00-142-2449, 00-142-2449, 5310001422449, 001422449
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-142-2449 | 04893 ( NUT, PLAIN, INTERNAL WRENCHING ) |
REFERENCE DRAWINGS & PICTURES

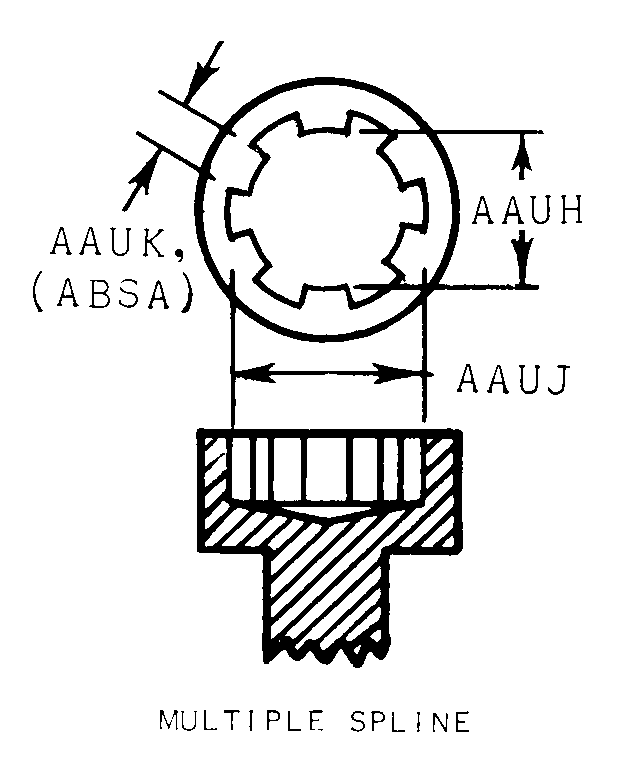

MULTIPLE SPLINE
Cross Reference | NSN 5310-00-142-2449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 204-012-106-1 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-012-106-001 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
| 204-012-106-1 | 80070 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 204-012-106-1 | 0A497 | MADDOX METAL WORKS INC |
| 204-012-106-1 | 04614 | TEXTRON SYSTEMS CORPORATIONDBA TEXTRON DEFENSE SYSTEMS |
Technical Data | NSN 5310-00-142-2449
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 4.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT DIAMETER | 4.775 INCHES MINIMUM AND 4.795 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | MULTIPLE SPLINE |
| SPLINE MINOR DIAMETER | 4.260 INCHES MINIMUM AND 4.265 INCHES MAXIMUM |
| SPLINE MAJOR DIAMETER | 4.410 INCHES MINIMUM AND 4.510 INCHES MAXIMUM |
| SPLINE QUANTITY | 52 |
