NSN 5310-00-143-5605
Part Details | KEY WASHER
5310-00-143-5605 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 1018836, 10-18836, 1018836, 10-18836, 1018836, 10-18836, 5310-00-143-5605, 00-143-5605, 5310001435605, 001435605
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-143-5605 | 01869 ( WASHER, KEY ) |

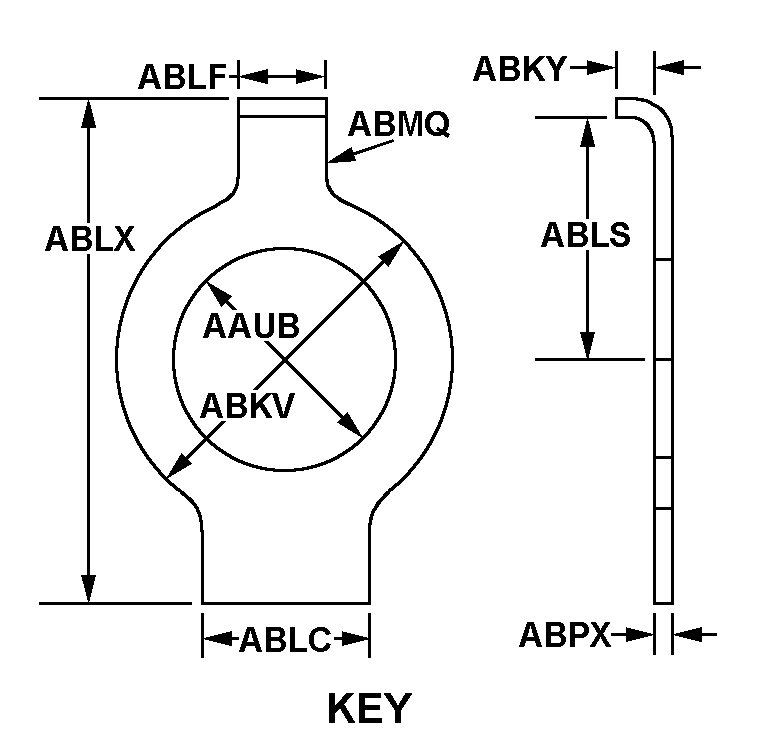

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-143-5605
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-18836 | 77820 | AMPHENOL CORPORATIONDBA AMPHENOL AEROSPACE OPERATIONS |
| 10-18836 | 28839 | TELEDYNE INDUSTRIES INCTELEDYNE POWER SYSTEMS DIV |
| 10-18836 | 59501 | UNISON INDUSTRIES, LLC |
Technical Data | NSN 5310-00-143-5605
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| HOLE DIAMETER | 0.255 INCHES MINIMUM AND 0.275 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.427 INCHES MINIMUM AND 0.447 INCHES MAXIMUM |
| EXTERNAL STRAIGHT KEY WIDTH | 0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY WIDTH | 0.177 INCHES MINIMUM AND 0.197 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO INSIDE OF PREBENT KEY | 0.219 INCHES NOMINAL |
| OVERALL DISTANCE INCLUDING KEYS | 0.646 INCHES MINIMUM AND 0.666 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.028 INCHES MINIMUM AND 0.034 INCHES MAXIMUM |
| INTERNAL PREBENT KEY ANGLE | 30.0 DEGREES NOMINAL |
| SPECIAL FEATURES | SECOND KEY PRE-BENT 30 DEGREES |
