NSN 5310-00-143-5629
Part Details | KEY WASHER
5310-00-143-5629 A washer of nonresilient material usually having two parallel bearing surfaces. The outside and/or inside edges have one or more protuberances. The ends and/or edges may be prebent at any angle or the protuberances may be prebent at any angle to the bearing surfaces. The keys or lugs may be fitted into keyways in adjacent material or they may be bent over after application to hold or lock one or more items in place. Excludes thrust type washer.
Alternate Parts: 7986911, 5310-00-143-5629, 00-143-5629, 5310001435629, 001435629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 16, 1968 | 00-143-5629 | 01869 ( WASHER, KEY ) |

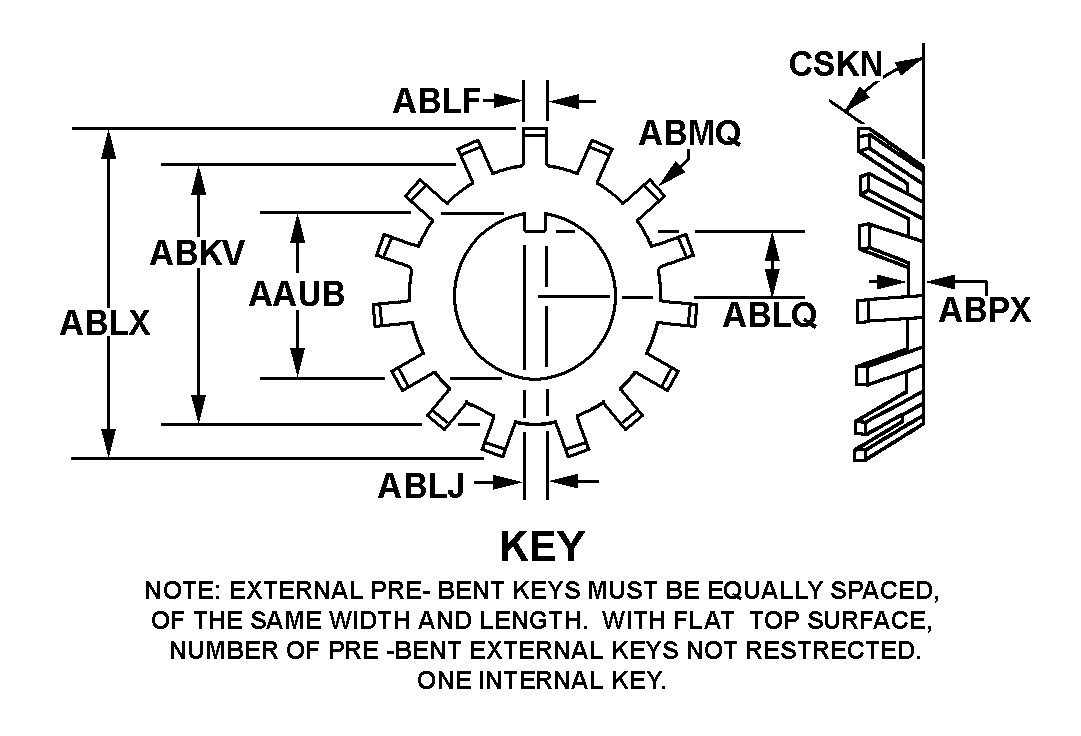

REFERENCE DRAWINGS & PICTURES
KEY
Cross Reference | NSN 5310-00-143-5629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7986911 | 19206 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 5310-00-143-5629
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | KEY |
| EXTERNAL KEY QUANTITY | 13 |
| HOLE DIAMETER | 1.885 INCHES MINIMUM AND 1.895 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 2.940 INCHES MINIMUM AND 2.960 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY WIDTH | 0.240 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| INTERNAL STRAIGHT KEY WIDTH | 0.230 INCHES MINIMUM AND 0.246 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE TO TOP OF INTERNAL KEY | 0.631 INCHES MINIMUM AND 0.652 INCHES MAXIMUM |
| OVERALL DISTANCE INCLUDING KEYS | 3.360 INCHES MINIMUM AND 3.400 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.045 INCHES MINIMUM AND 0.051 INCHES MAXIMUM |
| EXTERNAL PREBENT KEY ANGLE | 30.0 DEGREES NOMINAL |
| SPECIAL FEATURES | INTERNAL KEY HAS ROUND TOP SURFACE |
| HEAT TREATMENT | ANNEALED |
