NSN 5310-00-145-2004
Part Details | WELDING PLAIN NUT
5310-00-145-2004 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 503595, 5310-00-145-2004, 00-145-2004, 5310001452004, 001452004
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 13, 1969 | 00-145-2004 | 15885 ( NUT, PLAIN, WELDING ) |

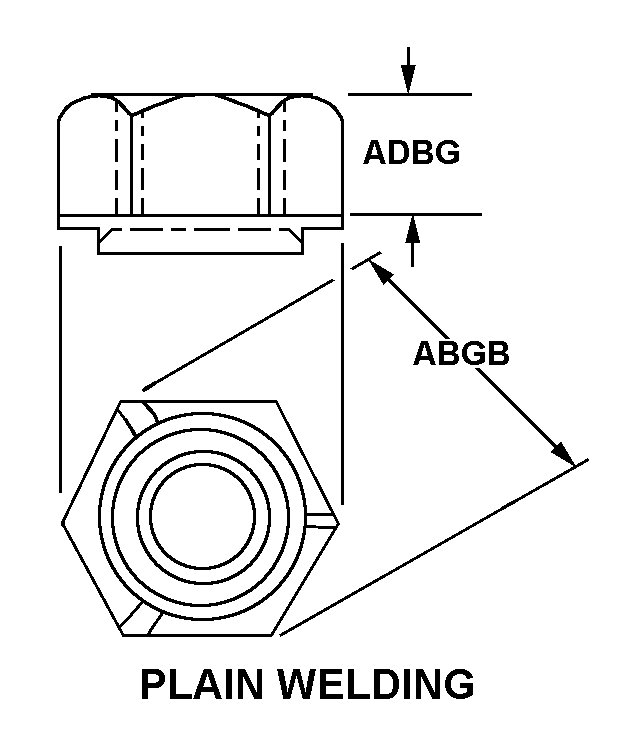

REFERENCE DRAWINGS & PICTURES
PLAIN WELDING
Cross Reference | NSN 5310-00-145-2004
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 503595 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
Technical Data | NSN 5310-00-145-2004
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| NUT THICKNESS | 0.547 INCHES NOMINAL |
