NSN 5310-00-147-3252
Part Details | HEXAGON SELF-LOCKING NUT
5310-00-147-3252 A nut having a flat bottom and 6 sides. An integral feature is incorporated for locking on the threads of a mating member. Excludes NUT (1), SELF-LOCKING, CAP.
Alternate Parts: H3108K1, H31-08K1, 8601283, 860128-3, 5310-00-147-3252, 00-147-3252, 5310001473252, 001473252
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 26, 1971 | 00-147-3252 | 05277 ( NUT, SELF-LOCKING, HEXAGON ) |
REFERENCE DRAWINGS & PICTURES

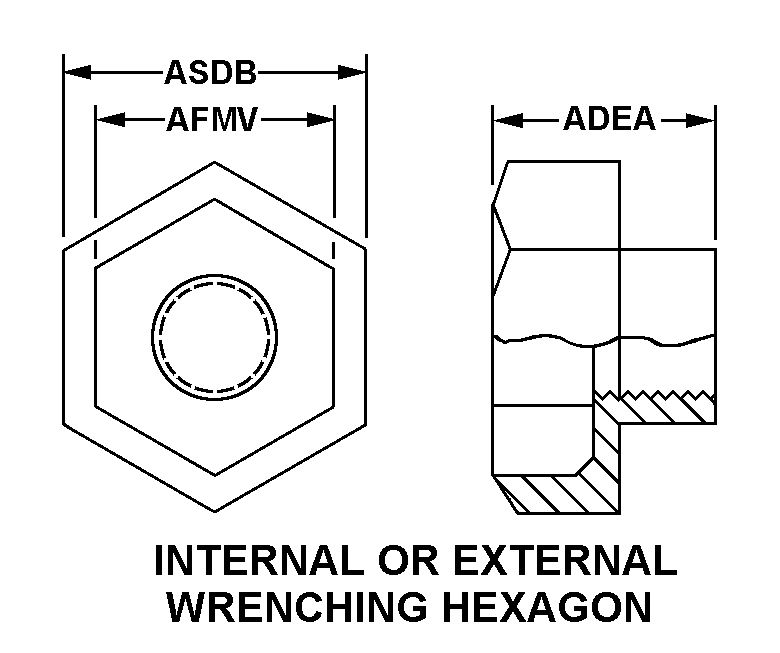

INTERNAL OR EXTERNAL WRENCHING HEXAGON
Cross Reference | NSN 5310-00-147-3252
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H31-08K1 | 75237 | ARCONIC GLOBAL FASTENERS & RINGS,INC. |
| 860128-3 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATIONSYSTEMS DIVISION |
Technical Data | NSN 5310-00-147-3252
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | INTERNAL OR EXTERNAL WRENCHING HEXAGON |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| BEARING SURFACE TYPE | CHAMFERED |
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| NUT HEIGHT | 0.395 INCHES MAXIMUM |
| WIDTH ACROSS FLATS | 0.344 INCHES NOMINAL |
| PRECIOUS MATERIAL | SILVER |
| PRECIOUS MATERIAL AND LOCATION | OVERALL SILVER |
