NSN 5310-00-149-8604
Part Details | INTERNAL WRENCHING PLAIN NUT
5310-00-149-8604 A cylindrical-shaped nut, the end opposite the bearing surface being designed with an internal socket or splines for use with an inserted wrench.
Alternate Parts: GN10083, GN1008-3, ALLENUT632, ALLENUT6-32, GN10083, GN1008-3, 5310-00-149-8604, 00-149-8604, 5310001498604, 001498604
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 10, 1971 | 00-149-8604 | 04893 ( NUT, PLAIN, INTERNAL WRENCHING ) |
REFERENCE DRAWINGS & PICTURES

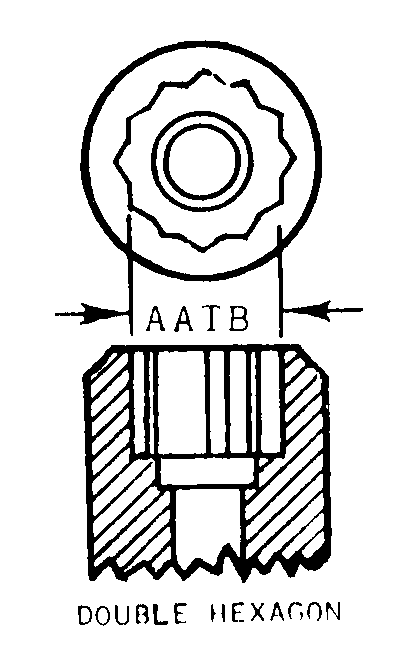

DOUBLE HEXAGON

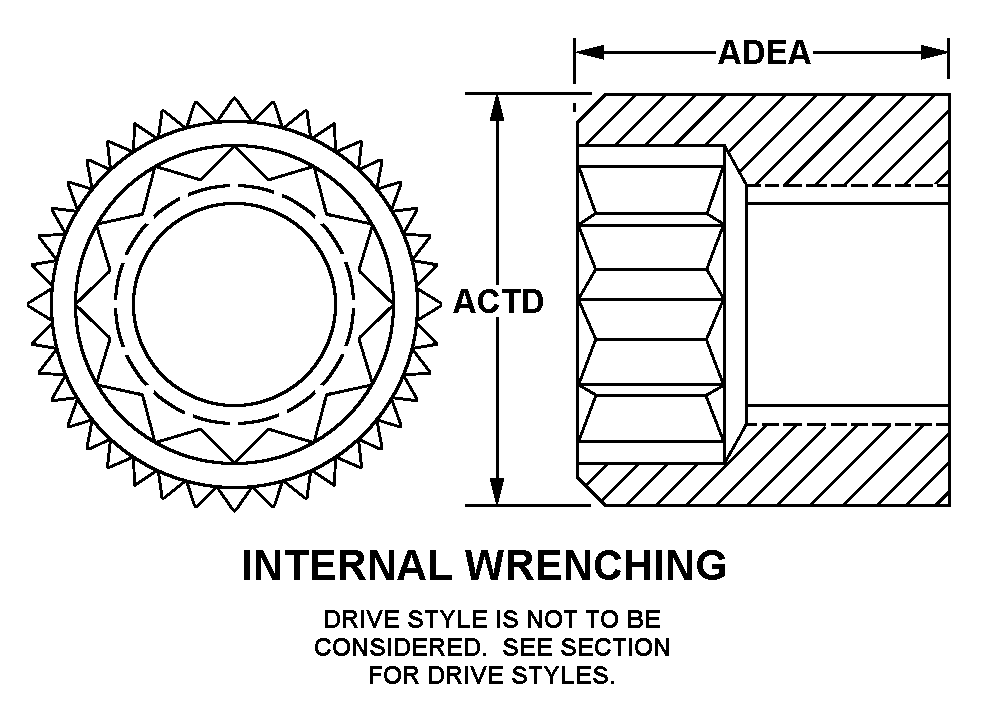

INTERNAL WRENCHING
Cross Reference | NSN 5310-00-149-8604
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GN1008-3 | 70276 | ALLEN MFG COSUB OF CHICAGO PNEUMATIC TOOL CO |
| ALLENUT6-32 | 70276 | ALLEN MFG COSUB OF CHICAGO PNEUMATIC TOOL CO |
| GN1008-3 | 0YDF0 | WORLD FASTENERS INC. |
Technical Data | NSN 5310-00-149-8604
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 42.0 ROCKWELL C MAXIMUM |
| NUT STYLE | INTERNAL WRENCHING |
| NUT DIAMETER | 0.274 INCHES MINIMUM AND 0.278 INCHES MAXIMUM |
| NUT HEIGHT | 0.223 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | DOUBLE HEXAGON |
| WIDTH BETWEEN FLATS | 0.156 INCHES NOMINAL |
