NSN 5310-00-150-4215
Part Details | KNURLED PLAIN NUT
5310-00-150-4215 A nut, round in shape, having all or part of its outer surface knurled. It may have provisions for external wrenching. For items having a thickness (or height) exceeding two times the outside diameter, use POST, ELECTRICAL-MECHANICAL EQUIPMENT. See also NUT (1), PLAIN, ROUND. (When height or thickness, and/or outside diameter is designated as a tolerance dimension, the maximum dimension will be used to determine compliance).
Alternate Parts: 3145, 5310-00-150-4215, 00-150-4215, 5310001504215, 001504215
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 08, 1971 | 00-150-4215 | 15886 ( NUT, PLAIN, KNURLED ) |

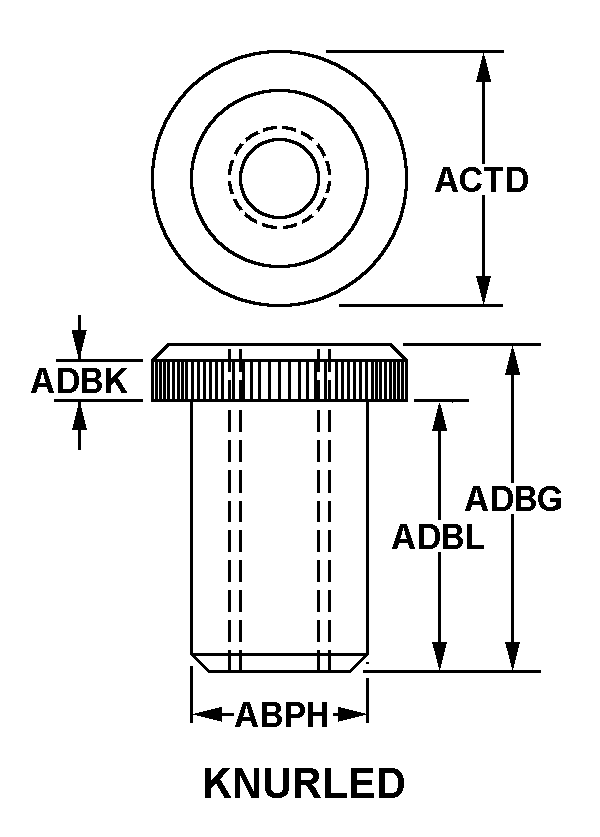

REFERENCE DRAWINGS & PICTURES
KNURLED
Cross Reference | NSN 5310-00-150-4215
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3145 | 00141 | ROLLER BEARING COMPANY OF AMERICA,INC. |
Technical Data | NSN 5310-00-150-4215
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| HARDNESS RATING | 75.0 ROCKWELL B MINIMUM AND 83.0 ROCKWELL B MAXIMUM |
| NUT STYLE | KNURLED |
| SMALL END DIAMETER | 0.438 INCHES NOMINAL |
| NUT DIAMETER | 1.000 INCHES NOMINAL |
| NUT THICKNESS | 0.812 INCHES NOMINAL |
| KNURL WIDTH | 0.250 INCHES NOMINAL |
| SMALL END LENGTH | 0.562 INCHES NOMINAL |
