NSN 5310-00-164-0791
Part Details | SHEET SPRING NUT
5310-00-164-0791 A nut formed from sheet spring material, usually steel, into varying flat, concave, bent or curved designs, having apertures with suitable boss or bosses usually on the upper side capable of securely gripping a mating threaded member. Excludes NUT (1), STAMPED.
Alternate Parts: RM52LHA49724A82, RM52LHA4972-4A82, A49724A82, A4972-4A-82, 60946601, 6094660-1, 5310-00-164-0791, 00-164-0791, 5310001640791, 001640791
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 31, 1973 | 00-164-0791 | 01865 ( NUT, SHEET SPRING ) |
REFERENCE DRAWINGS & PICTURES

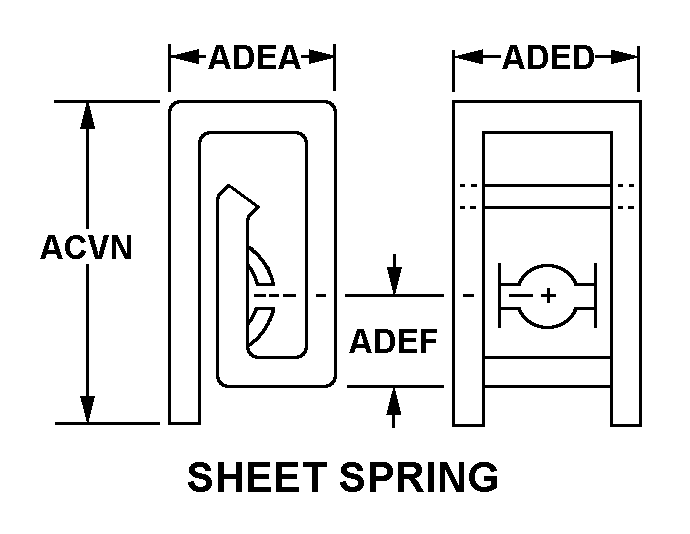

SHEET SPRING
Cross Reference | NSN 5310-00-164-0791
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| RM52LHA4972-4A82 | 72962 | HARVARD INDUSTRIES INC |
| A4972-4A-82 | 72962 | HARVARD INDUSTRIES INC |
| 6094660-1 | 03640 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
Technical Data | NSN 5310-00-164-0791
| Characteristic | Specifications |
|---|---|
| MATING MEMBER DIAMETER ACCOMMODATED | 0.156 INCHES NOMINAL |
| NUT STYLE | SHEET SPRING |
| MATERIAL THICKNESS | 0.025 INCHES NOMINAL |
| NUT LENGTH | 0.600 INCHES NOMINAL |
| NUT HEIGHT | 0.230 INCHES NOMINAL |
| NUT WIDTH | 0.500 INCHES NOMINAL |
| DISTANCE FROM CENTER OF APERATURE TO END | 0.128 INCHES NOMINAL |
| FEATURES PROVIDED | FLOATING NUT |
