NSN 5310-00-164-1971
Part Details | WING PLAIN NUT
5310-00-164-1971 A nut having wings designed for manual turning without driver or wrench.
Alternate Parts: AE1032, AE10-32, 5310-00-164-1971, 00-164-1971, 5310001641971, 001641971
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 05, 1971 | 00-164-1971 | 01862 ( NUT, PLAIN, WING ) |

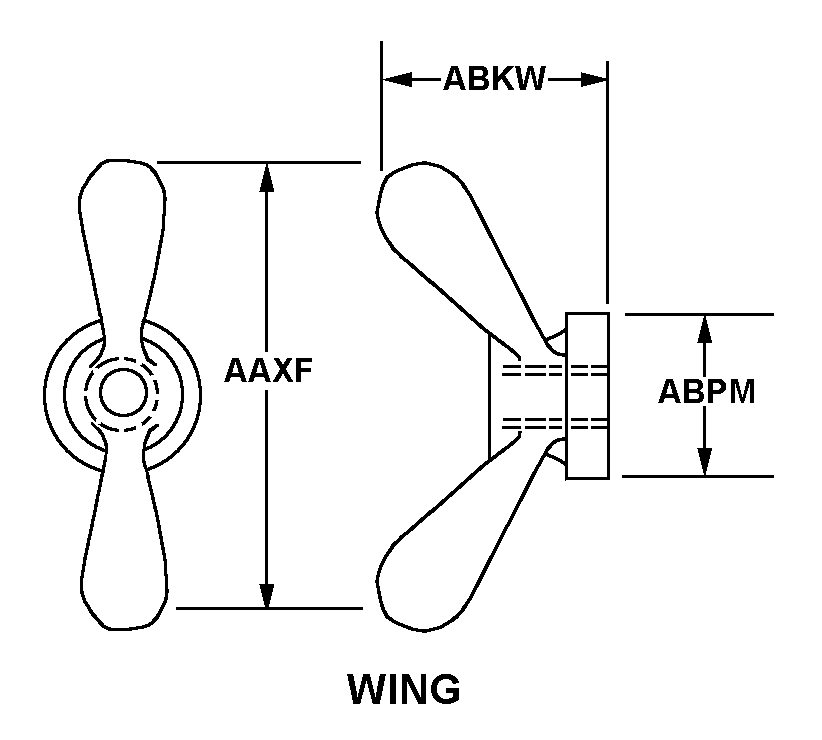

REFERENCE DRAWINGS & PICTURES
WING
Cross Reference | NSN 5310-00-164-1971
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AE10-32 | 05673 | METHOD-ICS CO INCTESTING MACHINE DIV |
Technical Data | NSN 5310-00-164-1971
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | WING |
| WING SPREAD WIDTH | 0.750 INCHES NOMINAL |
| OVERALL HEIGHT | 0.344 INCHES NOMINAL |
| BODY DIAMETER | 0.315 INCHES NOMINAL |
| FABRICATION METHOD | CAST |
