NSN 5310-00-165-8370
Part Details | WELDING PLAIN NUT
5310-00-165-8370 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 25853641, 2585364-1, 5310-00-165-8370, 00-165-8370, 5310001658370, 001658370
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 26, 1971 | 00-165-8370 | 15885 ( NUT, PLAIN, WELDING ) |
REFERENCE DRAWINGS & PICTURES

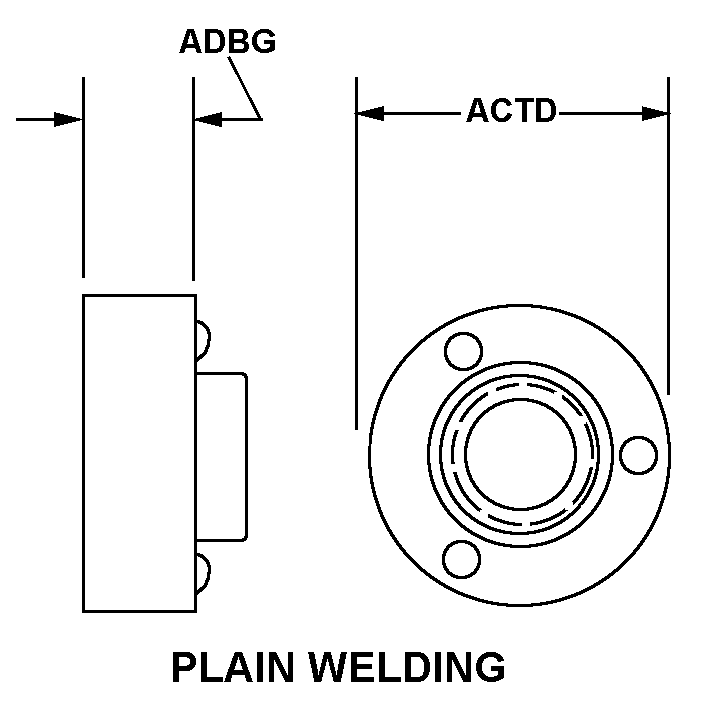

PLAIN WELDING
Cross Reference | NSN 5310-00-165-8370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2585364-1 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5310-00-165-8370
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| NUT DIAMETER | 0.417 INCHES MINIMUM AND 0.457 INCHES MAXIMUM |
| NUT THICKNESS | 1.105 INCHES MINIMUM AND 1.145 INCHES MAXIMUM |
