NSN 5310-00-166-9217
Part Details | WELDING PLAIN NUT
5310-00-166-9217 A nut with projection(s) that is/are designed to localize heating, during welding, at predetermined points and to fuse with the metal to which the nut is mounted.
Alternate Parts: 6869552, 5310-00-166-9217, 00-166-9217, 5310001669217, 001669217
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 13, 1971 | 00-166-9217 | 15885 ( NUT, PLAIN, WELDING ) |
REFERENCE DRAWINGS & PICTURES

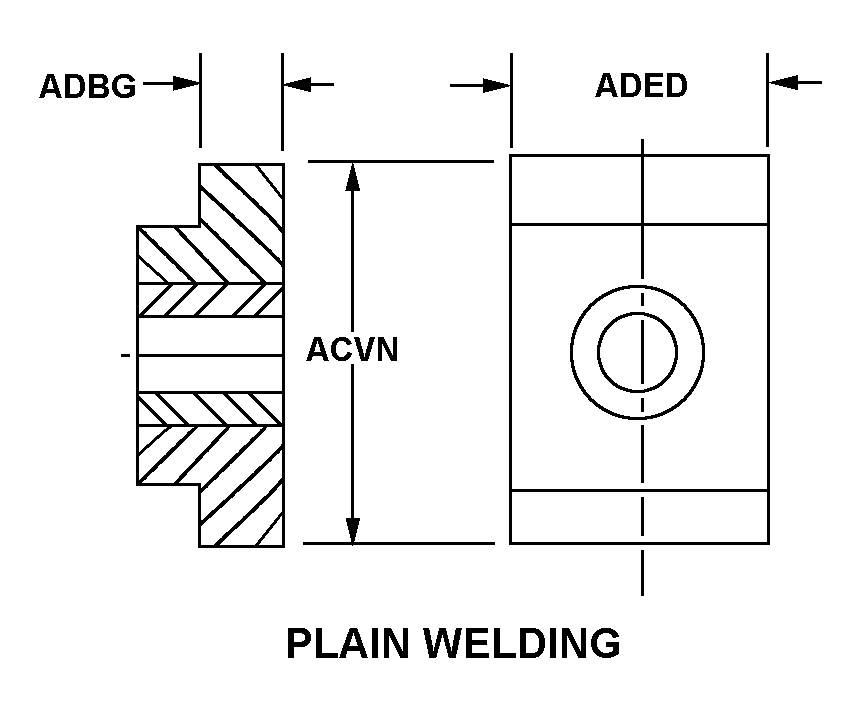

PLAIN WELDING
Cross Reference | NSN 5310-00-166-9217
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6869552 | 73342 | ALLISON TRANSMISSION, INC. |
Technical Data | NSN 5310-00-166-9217
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | PLAIN WELDING |
| NUT LENGTH | 0.525 INCHES MINIMUM AND 0.575 INCHES MAXIMUM |
| NUT WIDTH | 0.350 INCHES NOMINAL |
