NSN 5310-00-167-5224
Part Details | ASSEMBLED WASHER SELF-LOCKING NUT
5310-00-167-5224 A nut on which has been assembled a nonremovable washer. An integral feature is incorporated for locking on the threads of a mating member.
Alternate Parts: 901851002700, 90185-10027-00, 42511, 5310-00-167-5224, 00-167-5224, 5310001675224, 001675224
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | NOV 17, 1971 | 00-167-5224 | 29736 ( NUT, SELF-LOCKING, ASSEMBLED WASHER ) |

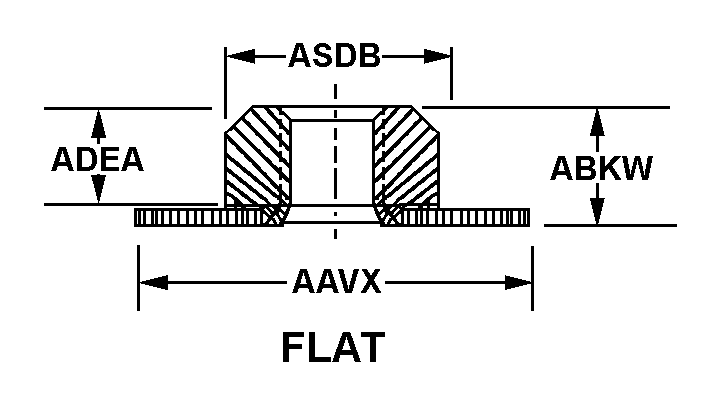

REFERENCE DRAWINGS & PICTURES
FLAT
Cross Reference | NSN 5310-00-167-5224
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90185-10027-00 | 10695 | TAYLOR-DUNN CORPORATIONDBA METRO CROWN INTERNATIONAL |
| 42511 | 10695 | TAYLOR-DUNN CORPORATIONDBA METRO CROWN INTERNATIONAL |
Technical Data | NSN 5310-00-167-5224
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNC |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | FLAT |
| WASHER OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| OVERALL HEIGHT | 0.188 INCHES NOMINAL |
| NUT HEIGHT | 0.156 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
