NSN 5310-00-170-1413
Part Details | SPLINE SELF-LOCKING NUT
5310-00-170-1413 A nut having an externally splined sleeve, which holds it in position when forced into a hole of slightly smaller diameter. An integral feature is incorporated for locking.
Alternate Parts: FF6010L6G, FF6010L-6-G, FF6010L6G, FF6010L-6-G, FF6010L6G, FF6010L-6-G, FFN60106G, FFN6010-6G, K71L000327, K71L0003-27, 71783516, 717835-16, FF6010L6G, FF6010L-6-G, FFN60106G, FFN6010-6-G, 5310-00-170-1413, 00-170-1413, 5310001701413, 001701413
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 11, 1973 | 00-170-1413 | 15893 ( NUT, SELF-LOCKING, SPLINE ) |
REFERENCE DRAWINGS & PICTURES

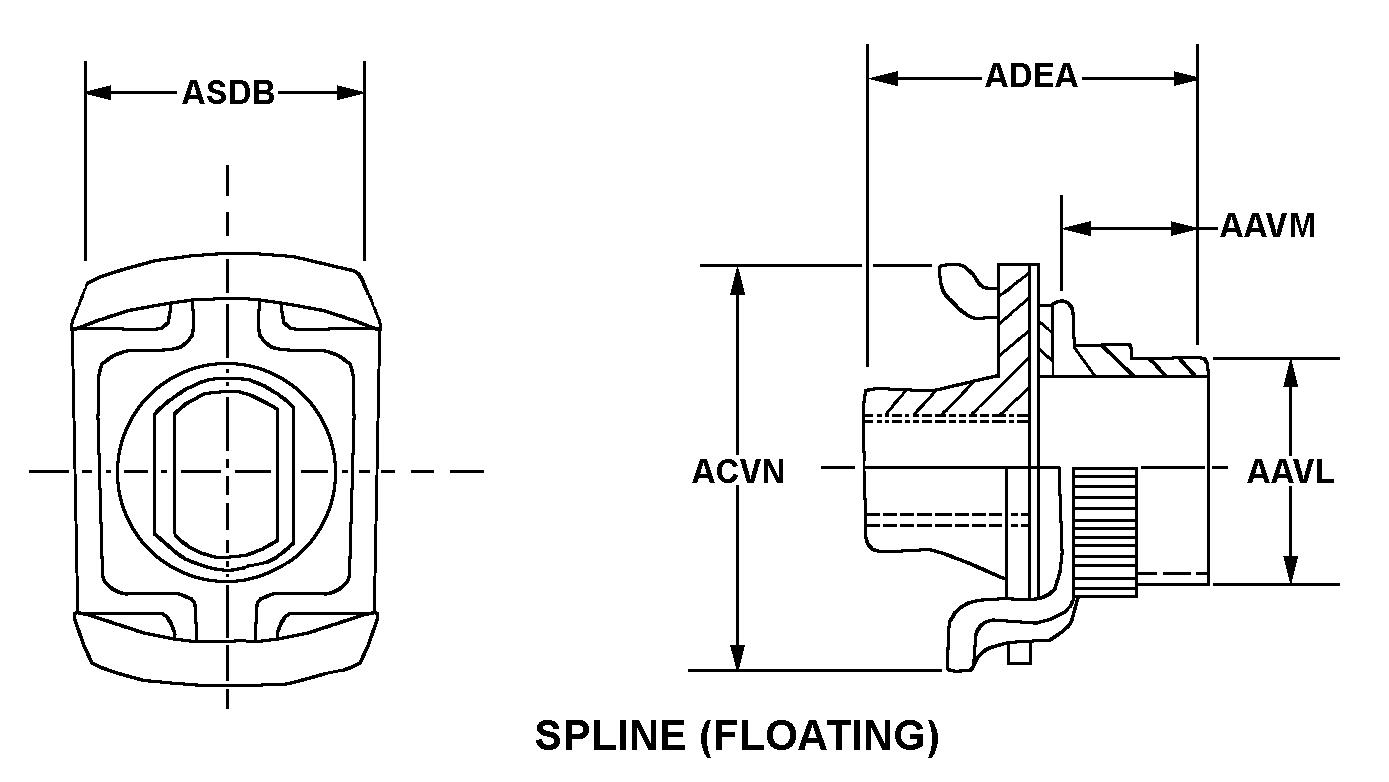

SPLINE (FLOATING)
Cross Reference | NSN 5310-00-170-1413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FF6010L-6-G | 17446 | HUCK INTERNATIONAL, INC.DBA ARCONIC FASTENING SYSTEMS AND |
| FF6010L-6-G | 0HDW7 | HUCK INTERNATIONAL, INC.DBA ARCONIC FASTENING SYSTEMS AND |
| FF6010L-6-G | 97928 | HUCK INTL INC |
| FFN6010-6G | 97928 | HUCK INTL INC |
| K71L0003-27 | 12464 | MCDONNELL DOUGLAS CORPMCDONNELL DOUGLAS ELECTRONIC SYSTEMS |
| 717835-16 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
| FF6010L-6-G | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
| FFN6010-6-G | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5310-00-170-1413
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| NUT STYLE | SPLINE (FLOATING) |
| PILOT DIAMETER | 0.212 INCHES MINIMUM AND 0.217 INCHES MAXIMUM |
| PILOT LENGTH | 0.285 INCHES NOMINAL |
| NUT LENGTH | 0.420 INCHES NOMINAL |
| NUT HEIGHT | 0.475 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.295 INCHES NOMINAL |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| LUBRICATION | DRY FILM LUBRICANT |
| TEMP RATING | 450.0 DEG FAHRENHEIT MAXIMUM |
