NSN 5315-00-043-1822
Part Details | POWER ACTUATED DRIVE PIN
5315-00-043-1822 An item designed to fasten metal, wood, composition material and the like to concrete, masonry, metal, and wood, with power provided from a cartridge (powder), compressed gas, pneumatic and/or hydraulic power. Excludes items that have the actuating media as an integral part of the pin.
Alternate Parts: 2335A, 5315-00-043-1822, 00-043-1822, 5315000431822, 000431822
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-043-1822 | 42304 ( PIN, DRIVE, POWER ACTUATED ) |

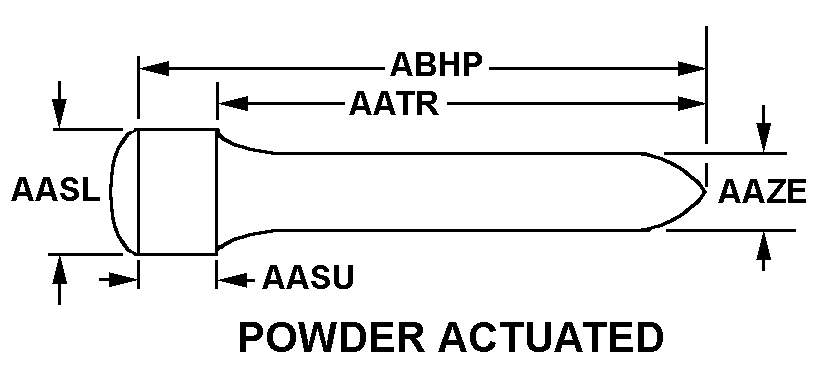

REFERENCE DRAWINGS & PICTURES
POWDER ACTUATED
Cross Reference | NSN 5315-00-043-1822
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2335A | 30323 | ILLINOIS TOOL WORKS INC |
Technical Data | NSN 5315-00-043-1822
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | POWDER ACTUATED |
| HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEAD HEIGHT | 0.125 INCHES NOMINAL |
| SHANK LENGTH | 1.500 INCHES NOMINAL |
| SHANK DIAMETER | 0.172 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| MATERIAL FOR WHICH DESIGNED | CONCRETE AND MASONRY |
