NSN 5315-00-047-3799
Part Details | ECCENTRIC PIN
5315-00-047-3799 A headed, cylindrically-shaped metal item having a shank and/or shoulder offset from the geometric center of the head. If shouldered, a portion of the shank and/or shoulder may be concentric with the head.
Alternate Parts: 17493321, 174933-21, 5315-00-047-3799, 00-047-3799, 5315000473799, 000473799
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-047-3799 | 21967 ( PIN, ECCENTRIC ) |
REFERENCE DRAWINGS & PICTURES

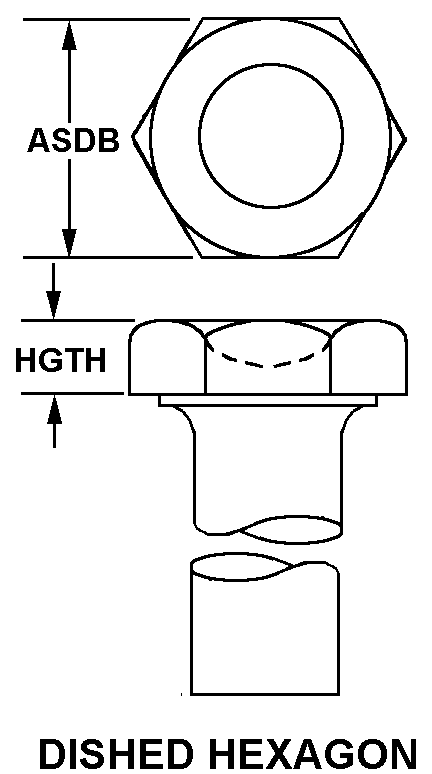

DISHED HEXAGON
ECCENTRIC
Cross Reference | NSN 5315-00-047-3799
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 174933-21 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5315-00-047-3799
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ECCENTRIC |
| OVERALL LENGTH | 1.810 INCHES NOMINAL |
| OFFSET DISTANCE BETWEEN GEOMETRIC CENTER OF HEAD AND CENTERLINE OF SHANK/SHOULDER | 0.031 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.309 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| FIRST STEP LENGTH | 0.188 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.249 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| SECOND STEP LENGTH | 0.874 INCHES NOMINAL |
| THIRD STEP DIAMETER | 0.187 INCHES MINIMUM AND 0.189 INCHES MAXIMUM |
| THIRD STEP LENGTH | 0.250 INCHES NOMINAL |
| HEAD STYLE | DISHED HEXAGON |
| HEAD WIDTH | 0.430 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.043 INCHES NOMINAL |
| HEIGHT | 0.156 INCHES NOMINAL |
| NUMERIC DESIGNATION OF STEP ECCENTRIC TO HEAD | 2 |
