NSN 5315-00-049-3577
Part Details | MACHINE KEY
5315-00-049-3577 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 73563, 5315-00-049-3577, 00-049-3577, 5315000493577, 000493577
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-049-3577 | 02378 ( KEY, MACHINE ) |

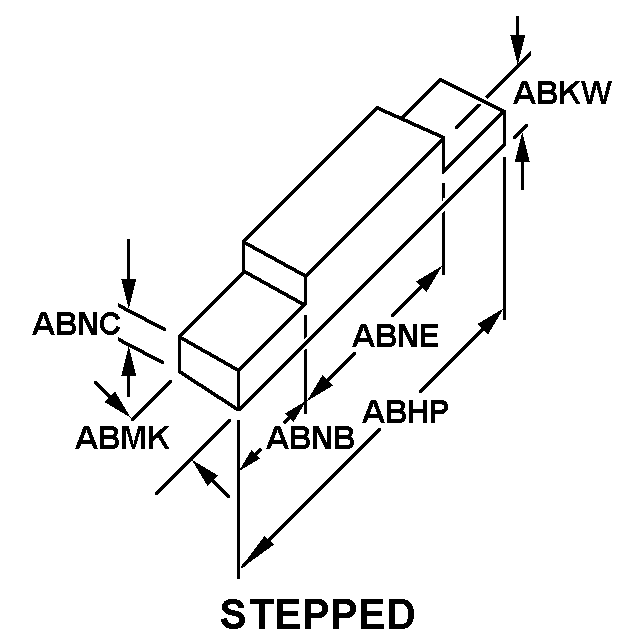

REFERENCE DRAWINGS & PICTURES
STEPPED
Cross Reference | NSN 5315-00-049-3577
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73563 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5315-00-049-3577
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEPPED |
| OVERALL LENGTH | 0.410 INCHES MINIMUM AND 0.430 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.610 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| OVERALL WIDTH | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| FIRST FLAT LENGTH | 0.100 INCHES MINIMUM AND 0.120 INCHES MAXIMUM |
| FLAT HEIGHT | 0.040 INCHES MINIMUM AND 0.060 INCHES MAXIMUM |
| SECOND FLAT LENGTH | 0.190 INCHES MINIMUM AND 0.210 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
