NSN 5315-00-050-0743
Part Details | MACHINE KEY
5315-00-050-0743 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 1062947, 5315-00-050-0743, 00-050-0743, 5315000500743, 000500743
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-050-0743 | 02378 ( KEY, MACHINE ) |

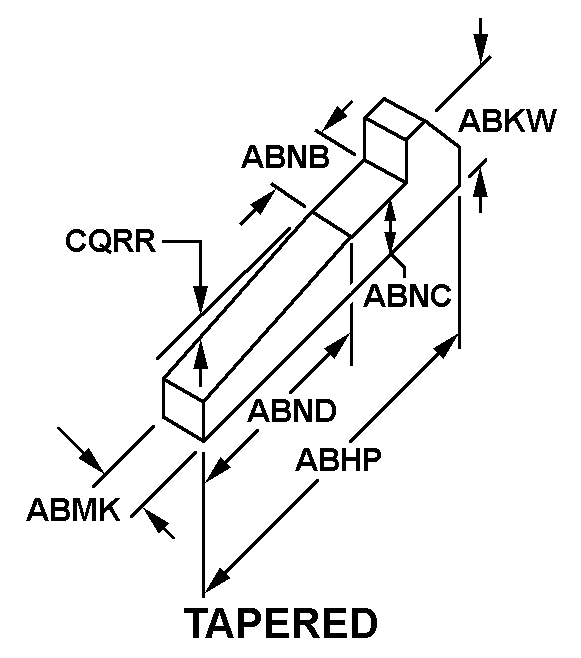

REFERENCE DRAWINGS & PICTURES
TAPERED
Cross Reference | NSN 5315-00-050-0743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1062947 | 12204 | DAIMLER CHRYSLER |
Technical Data | NSN 5315-00-050-0743
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED |
| OVERALL LENGTH | 1.531 INCHES NOMINAL |
| OVERALL HEIGHT | 0.312 INCHES NOMINAL |
| OVERALL WIDTH | 0.1855 INCHES MINIMUM AND 0.1875 INCHES MAXIMUM |
| FIRST FLAT LENGTH | 0.1855 INCHES MINIMUM AND 0.1875 INCHES MAXIMUM |
| FLAT HEIGHT | 0.1875 INCHES MINIMUM AND 0.1895 INCHES MAXIMUM |
| TAPER LENGTH | 1.062 INCHES NOMINAL |
| TAPER | 0.125 PER FOOT IN INCHES |
| STARTING EDGE SHAPE | STRAIGHT |
