NSN 5315-00-051-1851
Part Details | NAIL
5315-00-051-1851 A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails."
Alternate Parts: ASTMF1667 NL PL06B, ASTM-F1667 NL PL-06B, FFN105, FF-N-105, FFN105 TY2ST18SZ212 L X.135D, FF-N-105 TY2ST18SZ2-1/2 L X.135D, 5315-00-051-1851, 00-051-1851, 5315000511851, 000511851
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1960 | 00-051-1851 | 29631 ( NAIL ) |
REFERENCE DRAWINGS & PICTURES
OFFSET

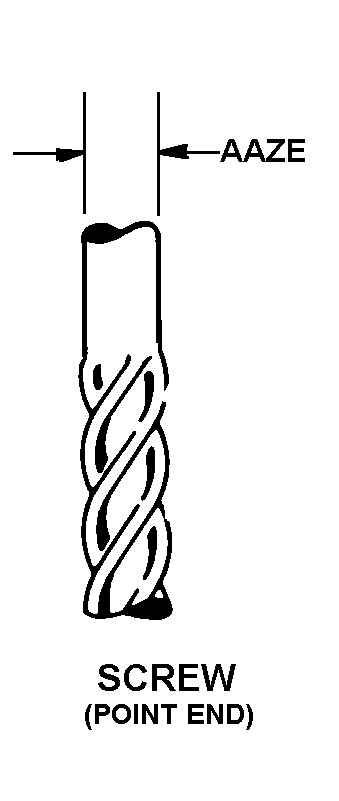

SCREW
DIAMOND
Cross Reference | NSN 5315-00-051-1851
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASTM-F1667 NL PL-06B | 81346 | AMERICAN SOCIETY FOR TESTING ANDMATERIALS |
| FF-N-105 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| FF-N-105 TY2ST18SZ2-1/2 L X.135D | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
Technical Data | NSN 5315-00-051-1851
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | COLD FORMED |
| STERILIZED | NO |
| SHANK STYLE | SCREW |
| SHANK DIAMETER | 0.135 INCHES NOMINAL |
| HEAD STYLE | 9 OFFSET |
| HEAD DIAMETER | 0.312 INCHES NOMINAL |
| POINT STYLE | DIAMOND |
| FASTENER LENGTH | 2.500 INCHES NOMINAL |
| DECORATIVE HEAD | NO |
| SPECIAL FEATURES | 50-LB CARTON |
| SUPPLEMENTARY FEATURES | PALLET |
