NSN 5315-00-051-5292
Part Details | POWER ACTUATED DRIVE PIN
5315-00-051-5292 An item designed to fasten metal, wood, composition material and the like to concrete, masonry, metal, and wood, with power provided from a cartridge (powder), compressed gas, pneumatic and/or hydraulic power. Excludes items that have the actuating media as an integral part of the pin.
Alternate Parts: NK25DX, 5315-00-051-5292, 00-051-5292, 5315000515292, 000515292
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1961 | 00-051-5292 | 42304 ( PIN, DRIVE, POWER ACTUATED ) |
REFERENCE DRAWINGS & PICTURES

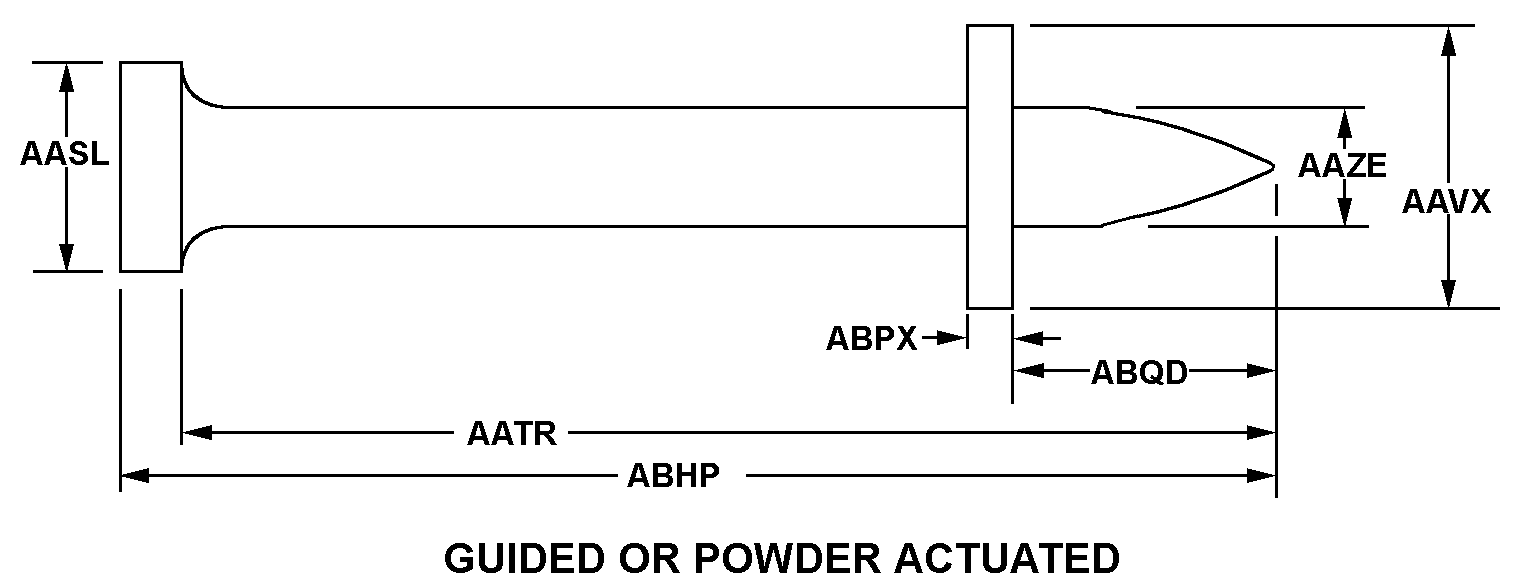

GUIDED OR POWDER ACTUATED
Cross Reference | NSN 5315-00-051-5292
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NK25DX | 11239 | HILTI, INC. |
Technical Data | NSN 5315-00-051-5292
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GUIDED OR POWDER ACTUATED |
| HEAD DIAMETER | 0.220 INCHES NOMINAL |
| SHANK LENGTH | 0.882 INCHES NOMINAL |
| WASHER OUTSIDE DIAMETER | 0.467 INCHES NOMINAL |
| SHANK DIAMETER | 0.219 INCHES NOMINAL |
| OVERALL LENGTH | 0.972 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.050 INCHES NOMINAL |
| SHANK LENGTH UNDER WASHER | 0.312 INCHES NOMINAL |
| MATERIAL FOR WHICH DESIGNED | CONCRETE |
