NSN 5315-00-052-1449
Part Details | SPRING PIN
5315-00-052-1449 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Alternate Parts: NAS427K74, 5315-00-052-1449, 00-052-1449, 5315000521449, 000521449
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 23, 1967 | 00-052-1449 | 02389 ( PIN, SPRING ) |

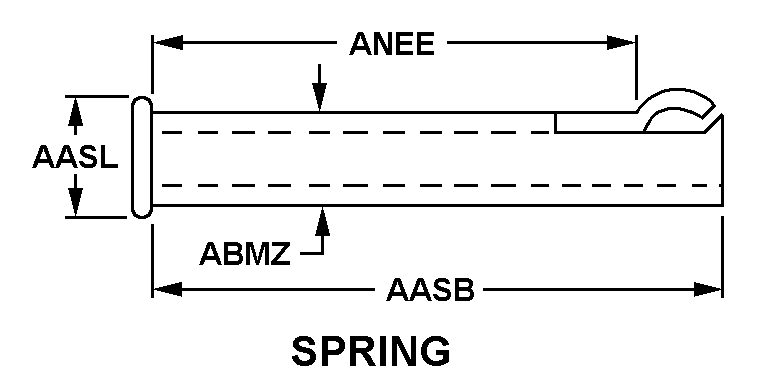

REFERENCE DRAWINGS & PICTURES
SPRING
Cross Reference | NSN 5315-00-052-1449
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS427K74 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5315-00-052-1449
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING |
| FASTENER LENGTH | 4.901 INCHES NOMINAL |
| HEAD DIAMETER | 0.250 INCHES NOMINAL |
| DIAMETER | 0.180 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| GRIP LENGTH | 4.620 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 80205-NAS427 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
