NSN 5315-00-052-4025
Part Details | HEADLESS SHOULDER PIN
5315-00-052-4025 A cylindrically-shaped headless item, having a shank at one or both ends. It is used for aligning, fastening, or transfer of torque and/or thrust by fitting into corresponding holes of another item. It may be threaded on one end.
Alternate Parts: 10548188, 5315-00-052-4025, 00-052-4025, 5315000524025, 000524025
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 18, 1967 | 00-052-4025 | 16749 ( PIN, SHOULDER, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
SQUARE

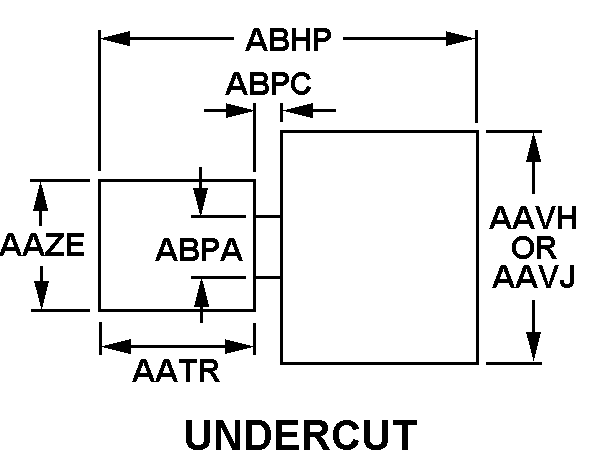

UNDERCUT
Cross Reference | NSN 5315-00-052-4025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10548188 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5315-00-052-4025
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNDERCUT |
| SHANK LENGTH | 0.750 INCHES NOMINAL |
| SHOULDER DIAMETER | 0.312 INCHES NOMINAL |
| SHANK DIAMETER | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.218 INCHES NOMINAL |
| UNDERCUT WIDTH | 2.000 INCHES NOMINAL |
| FIRST END STYLE | SQUARE |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | THREADED END |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 0.375 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.750 INCHES NOMINAL |
