NSN 5315-00-057-4430
Part Details | QUICK RELEASE PIN
5315-00-057-4430 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Alternate Parts: BLC7CL14F, LG7CCL14F, C29762, C2976-2, LG7CCL14F, LG7CCL14F, 5315-00-057-4430, 00-057-4430, 5315000574430, 000574430
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 06, 1967 | 00-057-4430 | 08323 ( PIN, QUICK RELEASE ) |
REFERENCE DRAWINGS & PICTURES

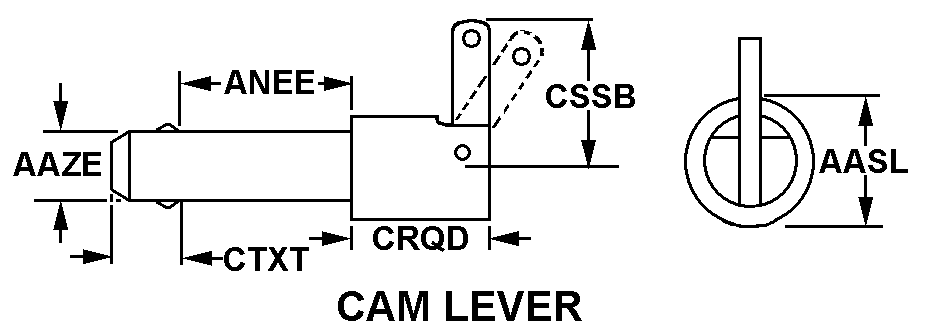

CAM LEVER
Cross Reference | NSN 5315-00-057-4430
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BLC7CL14F | 84256 | AVIBANK MFG., INC. |
| LG7CCL14F | 83014 | HARTWELL CORPORATION |
| C2976-2 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| LG7CCL14F | SV287 | PRODUCTOS FERROSOS PENINSULARESS.A.DE C.V. |
| LG7CCL14F | 62060 | SOUTHCO INC. |
Technical Data | NSN 5315-00-057-4430
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAM LEVER |
| HEAD DIAMETER | 0.580 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| SHANK DIAMETER | 0.4345 INCHES MINIMUM AND 0.4360 INCHES MAXIMUM |
| GRIP LENGTH | 1.400 INCHES MINIMUM AND 1.420 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 0.720 INCHES MINIMUM AND 0.820 INCHES MAXIMUM |
| PIN CENTER TO HANDLE END DISTANCE | 1.090 INCHES MINIMUM AND 1.140 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.300 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| DETENT QUANTITY | 4 |
| PIN ATTACHMENT TYPE | HOOK |
