NSN 5315-00-060-0563
Part Details | SPRING PIN
5315-00-060-0563 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Alternate Parts: NAS427T30, 5315-00-060-0563, 00-060-0563, 5315000600563, 000600563
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-060-0563 | 02389 ( PIN, SPRING ) |

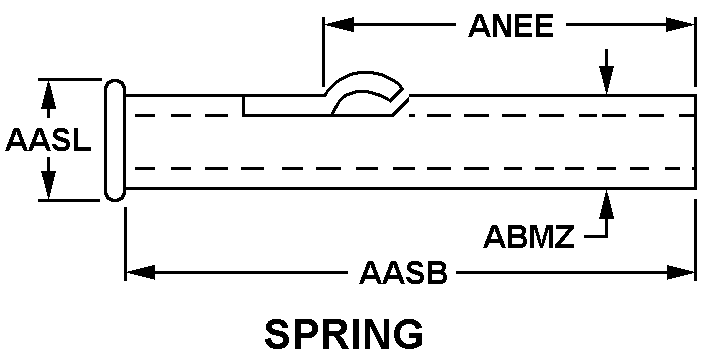

REFERENCE DRAWINGS & PICTURES
SPRING
Cross Reference | NSN 5315-00-060-0563
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS427T30 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5315-00-060-0563
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPRING |
| FASTENER LENGTH | 2.255 INCHES NOMINAL |
| HEAD DIAMETER | 0.250 INCHES NOMINAL |
| DIAMETER | 0.180 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| GRIP LENGTH | 1.880 INCHES NOMINAL |
