NSN 5315-00-071-6864
Part Details | RETAINING PIN
5315-00-071-6864 A preformed wire fastening device bent to form a spring at one end, one prong being extended, the other being bent to form a hook to hold the extended prong in place.
Alternate Parts: 66B12680, 135B5701, 66B12680, 5315-00-071-6864, 00-071-6864, 5315000716864, 000716864
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 25, 1967 | 00-071-6864 | 02388 ( PIN, RETAINING ) |

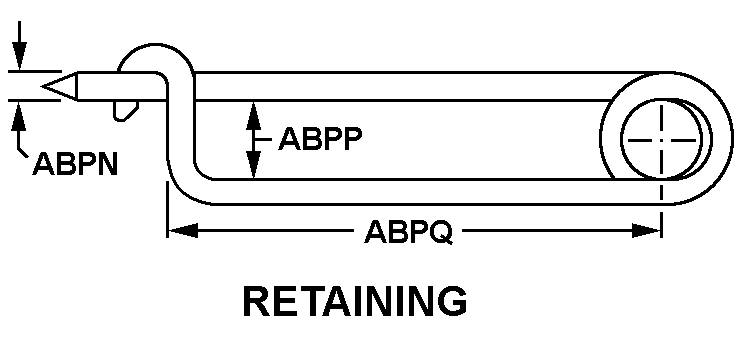

REFERENCE DRAWINGS & PICTURES
RETAINING
Cross Reference | NSN 5315-00-071-6864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66B12680 | 18894 | AIR ARMAMENT CENTER/ EN |
| 135B5701 | 05606 | GENERAL DYNAMICS-OTS, INC.DBA GD-OTS (WILLISTON) |
| 66B12680 | 98752 | WARNER ROBINS AIR LOGISTICS CENTER |
Technical Data | NSN 5315-00-071-6864
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RETAINING |
| WIRE STOCK DIAMETER | 0.049 INCHES NOMINAL |
| OPENING WIDTH | 0.170 INCHES MINIMUM AND 0.200 INCHES MAXIMUM |
| PRONG LENGTH | 0.850 INCHES MINIMUM AND 0.910 INCHES MAXIMUM |
