NSN 5315-00-076-9556
Part Details | POWER ACTUATED DRIVE PIN
5315-00-076-9556 An item designed to fasten metal, wood, composition material and the like to concrete, masonry, metal, and wood, with power provided from a cartridge (powder), compressed gas, pneumatic and/or hydraulic power. Excludes items that have the actuating media as an integral part of the pin.
Alternate Parts: 2427B, 5315-00-076-9556, 00-076-9556, 5315000769556, 000769556
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-076-9556 | 42304 ( PIN, DRIVE, POWER ACTUATED ) |
REFERENCE DRAWINGS & PICTURES

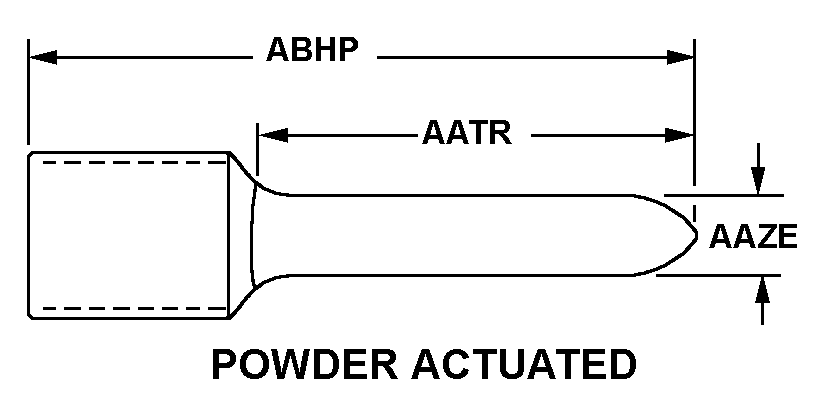

POWDER ACTUATED
Cross Reference | NSN 5315-00-076-9556
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2427B | 30323 | ILLINOIS TOOL WORKS INC |
Technical Data | NSN 5315-00-076-9556
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | POWDER ACTUATED |
| SHANK LENGTH | 1.000 INCHES NOMINAL |
| SHANK DIAMETER | 0.188 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.625 INCHES NOMINAL |
| MATERIAL FOR WHICH DESIGNED | CONCRETE AND MASONRY |
