NSN 5315-00-077-2459
Part Details | QUICK RELEASE PIN
5315-00-077-2459 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Alternate Parts: NAS1334A5S09, 5315-00-077-2459, 00-077-2459, 5315000772459, 000772459
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 09, 1967 | 00-077-2459 | 08323 ( PIN, QUICK RELEASE ) |
REFERENCE DRAWINGS & PICTURES

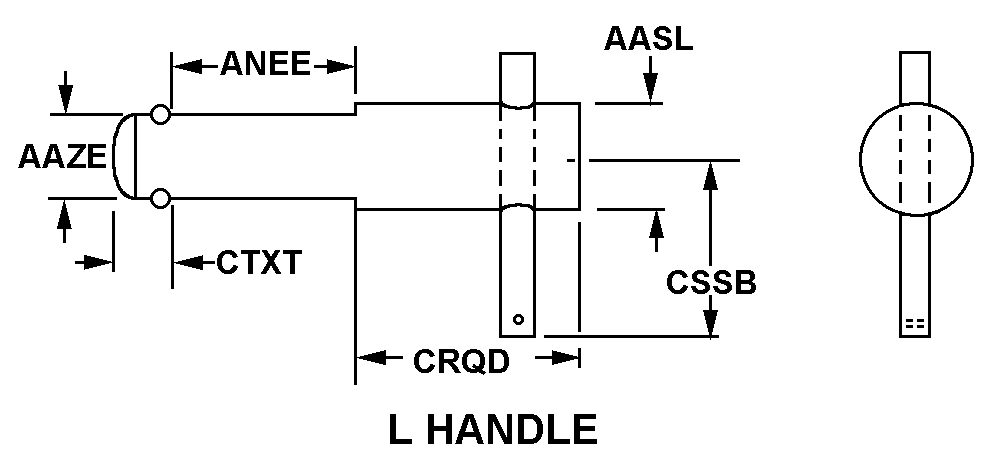

L HANDLE
Cross Reference | NSN 5315-00-077-2459
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1334A5S09 | 80205 | NATIONAL AEROSPACE STANDARDSCOMMITTEE AEROSPACE INDUSTRIES |
Technical Data | NSN 5315-00-077-2459
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L HANDLE |
| HEAD DIAMETER | 0.750 INCHES NOMINAL |
| SHANK DIAMETER | 0.247 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| GRIP LENGTH | 0.900 INCHES MINIMUM AND 0.920 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.550 INCHES NOMINAL |
| PIN CENTER TO HANDLE END DISTANCE | 1.780 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.380 INCHES NOMINAL |
| ACTUATION TYPE | PUSH |
| ACTUATION METHOD | PUSH BUTTON |
| PIN ATTACHMENT TYPE | RING |
| SPECIFICATION/STANDARD DATA | 80205-NAS1334 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
