NSN 5315-00-100-6626
Part Details | HEADLESS GROOVED PIN
5315-00-100-6626 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 903067, 90306-7, GP67125050050, GP67-125-0500-50, 5315-00-100-6626, 00-100-6626, 5315001006626, 001006626
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 13, 1972 | 00-100-6626 | 02386 ( PIN, GROOVED, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
OVAL
OVAL

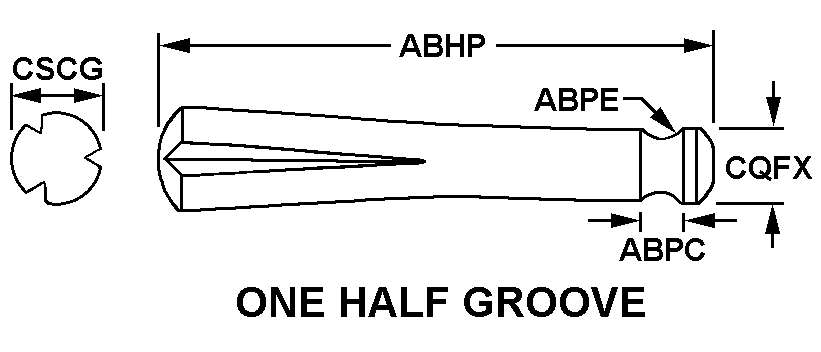

ONE HALF GROOVE
Cross Reference | NSN 5315-00-100-6626
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 90306-7 | 04643 | COMTEC INFORMATION SYSTEMS INCDIGITRONICS DIV |
| GP67-125-0500-50 | 73957 | GROOV-PIN CORPORATION |
Technical Data | NSN 5315-00-100-6626
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ONE HALF GROOVE |
| OVERALL LENGTH | 0.490 INCHES MINIMUM AND 0.510 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.059 INCHES MINIMUM AND 0.069 INCHES MAXIMUM |
| UNDERCUT RADIUS | 0.031 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.123 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| PIN LARGE END DIAMETER | 0.130 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| FIRST END STYLE | OVAL |
| FIRST END OUTER RADIUS | 0.146 INCHES MINIMUM AND 0.166 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
