NSN 5315-00-111-2743
Part Details | MACHINE KEY
5315-00-111-2743 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 5315001112743, 11643833, 5315-00-111-2743, 00-111-2743, 5315001112743, 001112743
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 16, 1968 | 00-111-2743 | 02378 ( KEY, MACHINE ) |

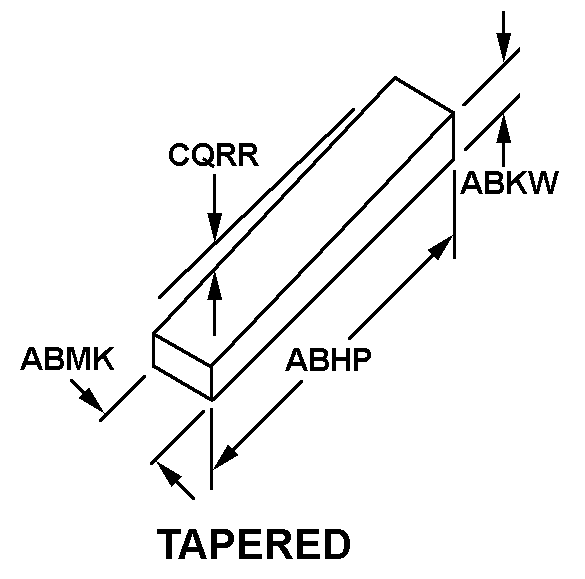

REFERENCE DRAWINGS & PICTURES
TAPERED
Cross Reference | NSN 5315-00-111-2743
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5315001112743 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 11643833 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5315-00-111-2743
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | TAPERED |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.740 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| TAPER | 1.500 PER FOOT IN INCHES |
| MOUNTING HOLE TYPE AND QUANTITY | 2 THREADED |
| MOUNTING HOLE THREAD SERIES DESIGNATOR | UNC |
| MOUNTING HOLE NOMINAL THREAD SIZE | 0.250 INCHES |
| MOUNTING HOLE THREAD CLASS | 2B |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.240 INCHES NOMINAL AND 0.260 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.740 INCHES NOMINAL |
| STARTING EDGE SHAPE | STRAIGHT |
