NSN 5315-00-115-0629
Part Details | MACHINE KEY
5315-00-115-0629 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 11578104, 5315-00-115-0629, 00-115-0629, 5315001150629, 001150629
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 13, 1968 | 00-115-0629 | 02378 ( KEY, MACHINE ) |
REFERENCE DRAWINGS & PICTURES

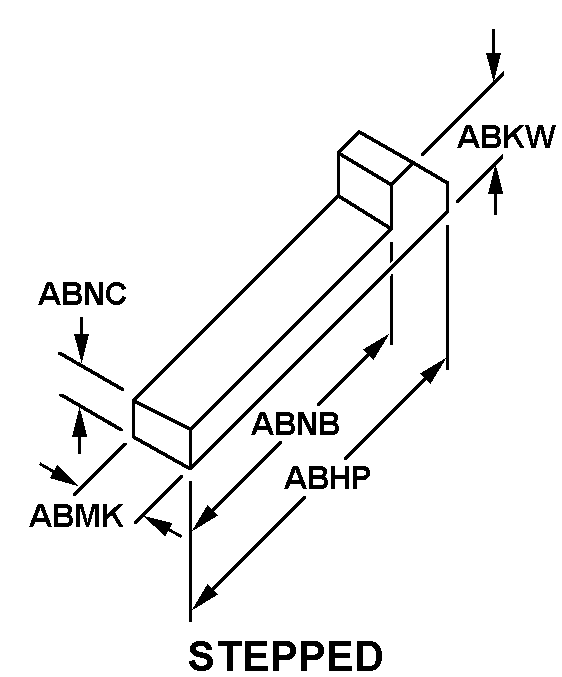

STEPPED
Cross Reference | NSN 5315-00-115-0629
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11578104 | 19206 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 5315-00-115-0629
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STEPPED |
| OVERALL LENGTH | 3.580 INCHES NOMINAL |
| OVERALL HEIGHT | 1.000 INCHES NOMINAL |
| OVERALL WIDTH | 1.498 INCHES NOMINAL |
| FIRST FLAT LENGTH | 2.5200 INCHES NOMINAL |
| FLAT HEIGHT | 0.0625 INCHES NOMINAL |
| MOUNTING HOLE TYPE AND QUANTITY | 1 PLAIN |
| MOUNTING HOLE DIAMETER | 0.970 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.720 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 1.000 INCHES NOMINAL |
| STARTING EDGE SHAPE | STRAIGHT |
