NSN 5315-00-116-0148
Part Details | MACHINE KEY
5315-00-116-0148 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 7X9, 7X9, 5315-00-116-0148, 00-116-0148, 5315001160148, 001160148
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 25, 1968 | 00-116-0148 | 02378 ( KEY, MACHINE ) |

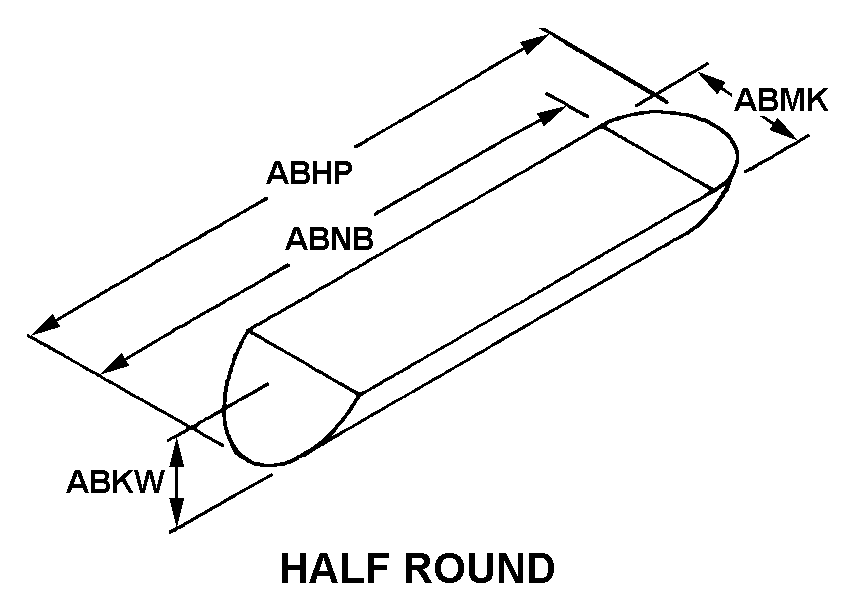

REFERENCE DRAWINGS & PICTURES
HALF ROUND
Cross Reference | NSN 5315-00-116-0148
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7X9 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 7X9 | 97286 | ROCKWELL INTERNATIONAL CORPINDUSTRIAL PRODUCTS GROUP |
Technical Data | NSN 5315-00-116-0148
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | HALF ROUND |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| OVERALL HEIGHT | 0.390 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| FIRST FLAT LENGTH | 1.500 INCHES NOMINAL |
| STARTING EDGE SHAPE | ROUND |
| STARTING EDGE RADIUS | 0.250 INCHES NOMINAL |
| FEATURES PROVIDED | CASEHARDENED |
