NSN 5315-00-132-8305
Part Details | STAPLE
5315-00-132-8305 A U-shaped fastening device with pointed ends.
Alternate Parts: STCR5019, 5315-00-132-8305, 00-132-8305, 5315001328305, 001328305
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-132-8305 | 29632 ( STAPLE ) |
REFERENCE DRAWINGS & PICTURES
OVAL SOLID (INCLUDES ROUND AND BUTTON HEADS)

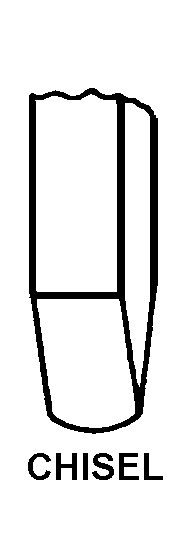

CHISEL
Cross Reference | NSN 5315-00-132-8305
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| STCR5019 | 08075 | STANLEY BOSTITCH INCSUB OF THE STANLEY WORKS CORP |
Technical Data | NSN 5315-00-132-8305
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT LOCATION | OVERALL |
| STERILIZED | NO |
| HEAD STYLE | OVAL SOLID (INCLUDES ROUND AND BUTTON HEADS) |
| INSIDE DISTANCE BETWEEN PRONGS | 0.406 INCHES NOMINAL |
| STOCK WIDTH | 0.050 INCHES NOMINAL |
| STOCK THICKNESS | 0.019 INCHES NOMINAL |
| POINT STYLE | CHISEL |
| FASTENER LENGTH | 0.250 INCHES NOMINAL |
| STOCK SHAPE | RECTANGULAR |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | AS DIFFERENTIATED BY THE LENGTH |
