NSN 5315-00-137-3439
Part Details | MACHINE KEY
5315-00-137-3439 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 7356317, 73563-17, 5315-00-137-3439, 00-137-3439, 5315001373439, 001373439
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 16, 1971 | 00-137-3439 | 02378 ( KEY, MACHINE ) |
REFERENCE DRAWINGS & PICTURES

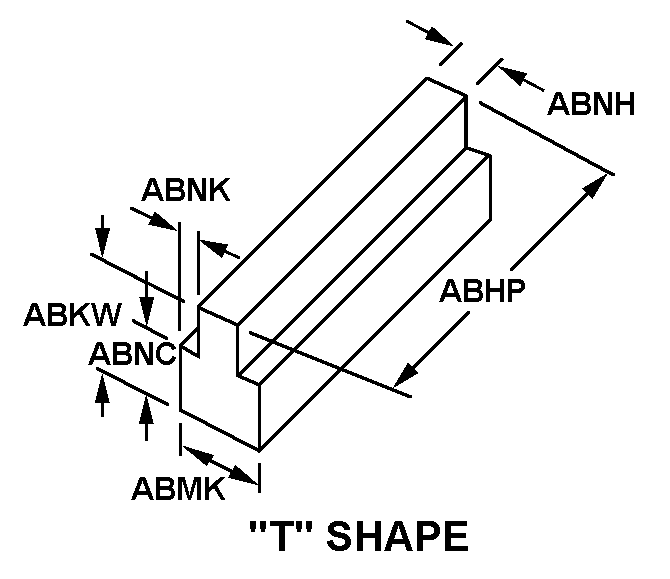

T SHAPE
Cross Reference | NSN 5315-00-137-3439
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 73563-17 | 99193 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5315-00-137-3439
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | T SHAPE |
| OVERALL LENGTH | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.630 INCHES MINIMUM AND 0.680 INCHES MAXIMUM |
| OVERALL WIDTH | 0.370 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| FLAT HEIGHT | 0.070 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| MINOR WIDTH | 0.130 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| SHOULDER WIDTH | 0.110 INCHES MINIMUM AND 0.130 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
