NSN 5315-00-143-6367
Part Details | WOODRUFF KEY
5315-00-143-6367 An item in the form of a segment of a disk, which may have a flat bottom, with or without projecting shoulders, designed to fit into a keyway in an axle or shaft, and into a matching slot in the hub or boss of a wheel, gear or pulley.
Alternate Parts: 426469PC5, 5315-00-143-6367, 00-143-6367, 5315001436367, 001436367
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 04, 1968 | 00-143-6367 | 02380 ( KEY, WOODRUFF ) |
REFERENCE DRAWINGS & PICTURES

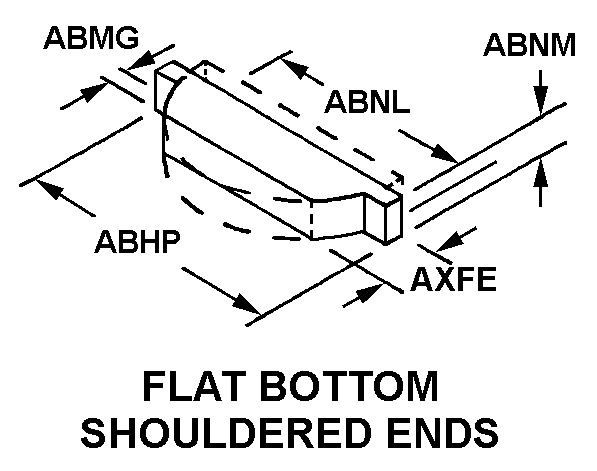

FLAT BOTTOM SHOULDERED ENDS
Cross Reference | NSN 5315-00-143-6367
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 426469PC5 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5315-00-143-6367
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLAT BOTTOM SHOULDERED ENDS |
| OVERALL LENGTH | 0.656 INCHES NOMINAL |
| SHOULDER HEIGHT | 0.0661 INCHES MINIMUM AND 0.0711 INCHES MAXIMUM |
| CIRCLE DIAMETER | 0.625 INCHES NOMINAL |
| THICKNESS | 0.1563 INCHES MINIMUM AND 0.1573 INCHES MAXIMUM |
| KEY HEIGHT | 0.234 INCHES MINIMUM AND 0.240 INCHES MAXIMUM |
| STARTING EDGE SHAPE | STRAIGHT |
| KEY SIZE DESIGNATION | WOODRUFF 6 |
