NSN 5315-00-152-6271
Part Details | HEADED GROOVED PIN
5315-00-152-6271 A cylindrically-shaped headed item, having circular or longitudinal groove(s).
Alternate Parts: 2584297, 5315-00-152-6271, 00-152-6271, 5315001526271, 001526271
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 18, 1971 | 00-152-6271 | 02382 ( PIN, GROOVED, HEADED ) |
REFERENCE DRAWINGS & PICTURES
CHAMFERED
BALL

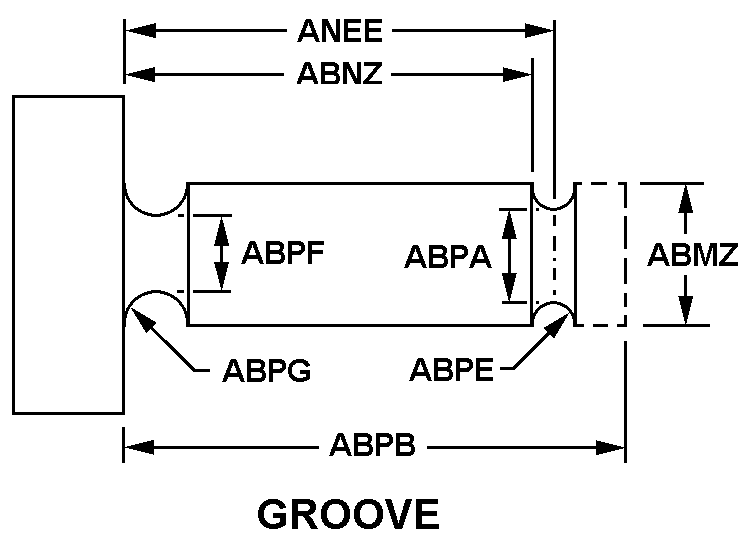

GROOVE
Cross Reference | NSN 5315-00-152-6271
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2584297 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 5315-00-152-6271
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | GROOVE |
| DIAMETER | 0.246 INCHES MINIMUM AND 0.248 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 1.260 INCHES MINIMUM AND 1.273 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.210 INCHES MINIMUM AND 0.212 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.385 INCHES MINIMUM AND 1.395 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.029 INCHES MINIMUM AND 0.032 INCHES MAXIMUM |
| SECOND UNDERCUT DIAMETER | 0.210 INCHES MINIMUM AND 0.212 INCHES MAXIMUM |
| SECOND UNDERCUT RADIUS | 0.015 INCHES MINIMUM |
| FIRST END STYLE | CHAMFERED |
| FIRST END TAPER LENGTH | 0.031 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| HEAD STYLE | 6 BALL |
| PIN HEAD DIAMETER | 0.375 INCHES NOMINAL |
| HEIGHT | 0.062 INCHES NOMINAL |
