NSN 5315-00-159-7268
Part Details | THREADED TAPERED PIN
5315-00-159-7268 A cone-shaped headless item, having a threaded portion at either end. It is used for aligning, fastening, and the like by fitting into a corresponding taper reamed hole.
Alternate Parts: 493631PC9, 5315-00-159-7268, 00-159-7268, 5315001597268, 001597268
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-159-7268 | 05444 ( PIN, TAPERED, THREADED ) |
REFERENCE DRAWINGS & PICTURES
CHAMFERED
SQUARE
CHAMFERED
SQUARE

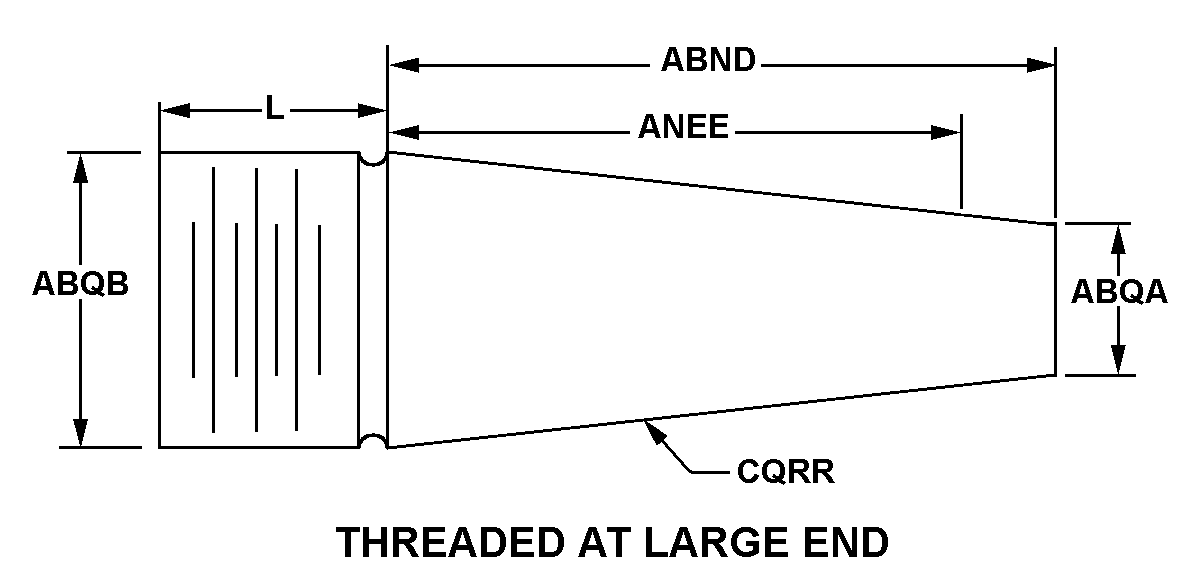

THREADED AT LARGE END
Cross Reference | NSN 5315-00-159-7268
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 493631PC9 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5315-00-159-7268
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED AT LARGE END |
| TAPER LENGTH | 1.500 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 0.310 INCHES NOMINAL |
| TAPER MAJOR DIAMETER | 0.336 INCHES MINIMUM AND 0.346 INCHES MAXIMUM |
| GRIP LENGTH | 1.375 INCHES NOMINAL |
| TAPER | 0.250 PER FOOT IN INCHES |
| FIRST END STYLE | CHAMFERED |
| FIRST END TAPER LENGTH | 0.031 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END STYLE | SQUARE |
| FIRST END LOCATION | CHAMFERED END |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.312 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.323 INCHES NOMINAL |
