NSN 5315-00-161-8654
Part Details | NAIL
5315-00-161-8654 A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails."
Alternate Parts: FFN103, MS907111, MS90711-1, 5315-00-161-8654, 00-161-8654, 5315001618654, 001618654
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-161-8654 | 29631 ( NAIL ) |
REFERENCE DRAWINGS & PICTURES
OFFSET
BARBED

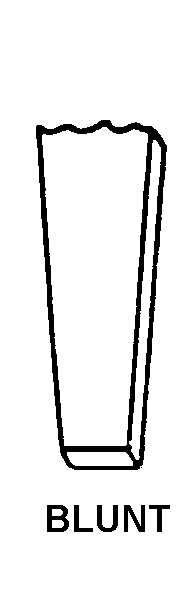

BLUNT
Cross Reference | NSN 5315-00-161-8654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FFN103 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| MS90711-1 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5315-00-161-8654
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SURFACE TREATMENT LOCATION | OVERALL |
| FABRICATION METHOD | COLD FORMED |
| STERILIZED | NO |
| SHANK STYLE | BARBED |
| SHANK THICKNESS | 0.065 INCHES NOMINAL |
| HEAD STYLE | 9 OFFSET |
| HEAD DIAMETER | 0.220 INCHES NOMINAL |
| POINT STYLE | BLUNT |
| FASTENER LENGTH | 0.750 INCHES NOMINAL |
| DECORATIVE HEAD | NO |
