NSN 5315-00-161-9815
Part Details | TACK
5315-00-161-9815 A short, sharp-pointed fastening device having a flat or oval head and a cut shank usually less than 1 inch (25.4 mm) in length.
Alternate Parts: ASTM F1667, PD177, 5747, MS9072211, MS90722-11, 5315-00-161-9815, 00-161-9815, 5315001619815, 001619815
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-161-9815 | 29633 ( TACK ) |
REFERENCE DRAWINGS & PICTURES

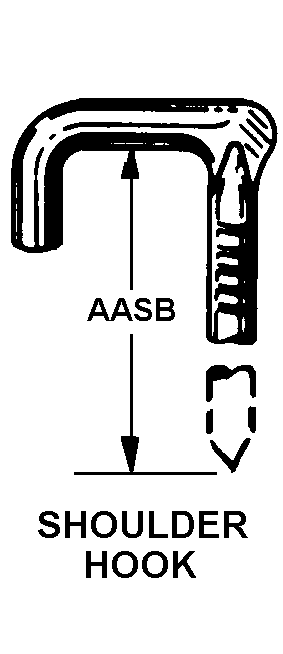

SHOULDER HOOK
SMOOTH ROUND
SIDE
Cross Reference | NSN 5315-00-161-9815
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ASTM F1667 | 81346 | AMERICAN SOCIETY FOR TESTING ANDMATERIALS |
| PD177 | 81336 | CHIEF OF ENGINEERSDEPT OF ARMY |
| 5747 | 17866 | DIETZGEN CORP |
| MS90722-11 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5315-00-161-9815
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SURFACE TREATMENT LOCATION | HEAD |
| FABRICATION METHOD | COLD FORMED |
| STERILIZED | NO |
| SHANK STYLE | SMOOTH ROUND |
| HEAD STYLE | 4 SHOULDER HOOK |
| POINT STYLE | SIDE |
| FASTENER LENGTH | 0.750 INCHES NOMINAL |
