NSN 5315-00-168-2931
Part Details | HEADLESS GROOVED PIN
5315-00-168-2931 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 27X405U, 27X405C, 27X405U25, 27X-405-U-25, 4000206, 5315-00-168-2931, 00-168-2931, 5315001682931, 001682931
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 19, 1970 | 00-168-2931 | 02386 ( PIN, GROOVED, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
OVAL
OVAL

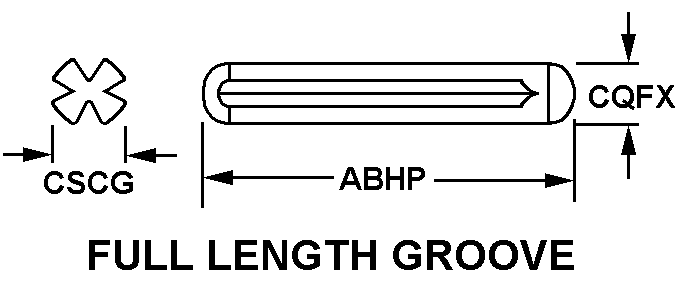

FULL LENGTH GROOVE
Cross Reference | NSN 5315-00-168-2931
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 27X405U | 19220 | THE EASTERN COMPANYDBA EBERHARD MFG DIV |
| 27X405C | 19220 | THE EASTERN COMPANYDBA EBERHARD MFG DIV |
| 27X-405-U-25 | 19220 | THE EASTERN COMPANYDBA EBERHARD MFG DIV |
| 4000206 | D9182 | ZF INDUSTRIEANTRIEBE WITTEN GMBH |
Technical Data | NSN 5315-00-168-2931
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FULL LENGTH GROOVE |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.250 INCHES NOMINAL |
| PIN LARGE END DIAMETER | 0.263 INCHES NOMINAL |
| FIRST END STYLE | OVAL |
| FIRST END OUTER RADIUS | 0.047 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
