NSN 5315-00-176-6236
Part Details | STAPLE
5315-00-176-6236 A U-shaped fastening device with pointed ends.
Alternate Parts: EX106038, EX1060-3-8, 5315-00-176-6236, 00-176-6236, 5315001766236, 001766236
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 07, 1970 | 00-176-6236 | 29632 ( STAPLE ) |
REFERENCE DRAWINGS & PICTURES
OVAL SOLID (INCLUDES ROUND AND BUTTON HEADS)

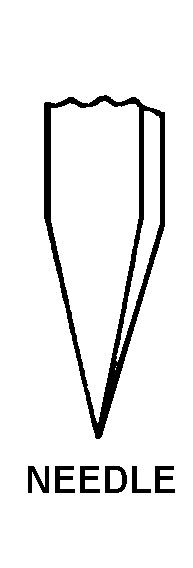

NEEDLE
Cross Reference | NSN 5315-00-176-6236
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EX1060-3-8 | 08075 | STANLEY BOSTITCH INCSUB OF THE STANLEY WORKS CORP |
Technical Data | NSN 5315-00-176-6236
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT LOCATION | OVERALL |
| STERILIZED | NO |
| HEAD STYLE | OVAL SOLID (INCLUDES ROUND AND BUTTON HEADS) |
| INSIDE DISTANCE BETWEEN PRONGS | 0.484 INCHES NOMINAL |
| STOCK WIDTH | 0.050 INCHES NOMINAL |
| STOCK THICKNESS | 0.019 INCHES NOMINAL |
| POINT STYLE | NEEDLE |
| FASTENER LENGTH | 0.382 INCHES NOMINAL |
| STOCK SHAPE | FLAT |
| COMPLETELY CLOSED STAPLE INSIDE DIAMETER | 0.078 INCHES NOMINAL |
