NSN 5315-00-177-7636
Part Details | HEADLESS GROOVED PIN
5315-00-177-7636 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: MS5160650, MS51606-50, 5315-00-177-7636, 00-177-7636, 5315001777636, 001777636
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUL 25, 1969 | 00-177-7636 | 02386 ( PIN, GROOVED, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
OVAL
OVAL

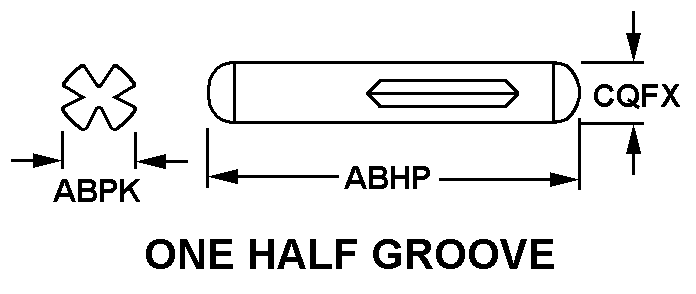

ONE HALF GROOVE
Cross Reference | NSN 5315-00-177-7636
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS51606-50 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 5315-00-177-7636
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ONE HALF GROOVE |
| OVERALL LENGTH | 0.917 INCHES MINIMUM AND 0.937 INCHES MAXIMUM |
| INTERMEDIATE DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| PIN SMALL END DIAMETER | 0.248 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| FIRST END STYLE | OVAL |
| FIRST END OUTER RADIUS | 0.312 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
