NSN 5315-00-182-4554
Part Details | MACHINE KEY
5315-00-182-4554 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Alternate Parts: 6858181, 6858181, 6858181, 5315-00-182-4554, 00-182-4554, 5315001824554, 001824554
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 10, 1970 | 00-182-4554 | 02378 ( KEY, MACHINE ) |

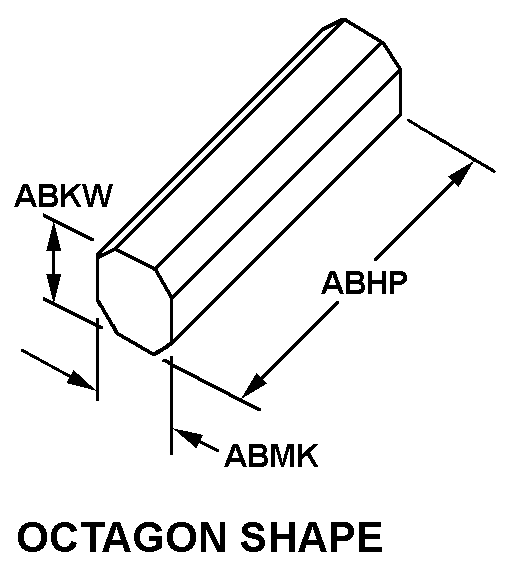

REFERENCE DRAWINGS & PICTURES
OCTAGON SHAPE
Cross Reference | NSN 5315-00-182-4554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6858181 | 73342 | ALLISON TRANSMISSION, INC. |
| 6858181 | 63005 | ROLLS-ROYCE CORPORATION |
| 6858181 | 29953 | SPACE AGE ENGINEERING INC |
Technical Data | NSN 5315-00-182-4554
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OCTAGON SHAPE |
| OVERALL LENGTH | 0.270 INCHES MINIMUM AND 0.280 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.499 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| OVERALL WIDTH | 0.499 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| STARTING EDGE SHAPE | CHAMFERED |
| KEY CHAMFER LENGTH | 0.080 INCHES NOMINAL |
| KEY CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
