NSN 5315-00-194-2719
Part Details | TACK
5315-00-194-2719 A short, sharp-pointed fastening device having a flat or oval head and a cut shank usually less than 1 inch (25.4 mm) in length.
Alternate Parts: SCA9411W10, 5315-00-194-2719, 00-194-2719, 5315001942719, 001942719
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-194-2719 | 29633 ( TACK ) |

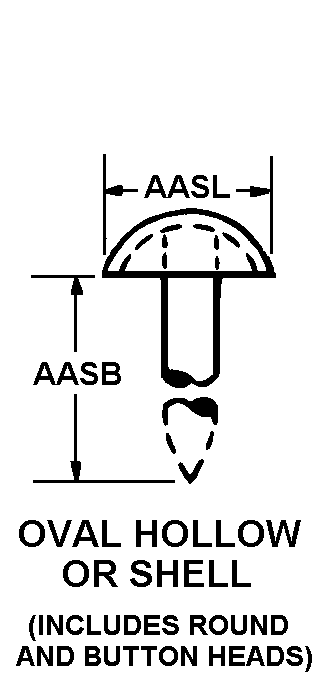

REFERENCE DRAWINGS & PICTURES
OVAL HOLLOW OR SHELL (INCLUDES ROUND AND BUTTON HEADS)
SMOOTH ROUND
BLUNT
Cross Reference | NSN 5315-00-194-2719
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SCA9411W10 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
Technical Data | NSN 5315-00-194-2719
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ENAMEL |
| SURFACE TREATMENT LOCATION | HEAD |
| FABRICATION METHOD | COLD FORMED |
| STERILIZED | NO |
| SHANK STYLE | SMOOTH ROUND |
| HEAD STYLE | OVAL HOLLOW OR SHELL (INCLUDES ROUND AND BUTTON HEADS) |
| POINT STYLE | 4 BLUNT |
| FASTENER LENGTH | 0.875 INCHES NOMINAL |
| HEAD COLOR | OLIVE DRAB |
