NSN 5315-00-204-8538
Part Details | HEADLESS GROOVED PIN
5315-00-204-8538 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 315484400, 3154844-00, 315484400, 3154844-00, 5315-00-204-8538, 00-204-8538, 5315002048538, 002048538
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 06, 1973 | 00-204-8538 | 02386 ( PIN, GROOVED, HEADLESS ) |
REFERENCE DRAWINGS & PICTURES
ROUND
ROUND

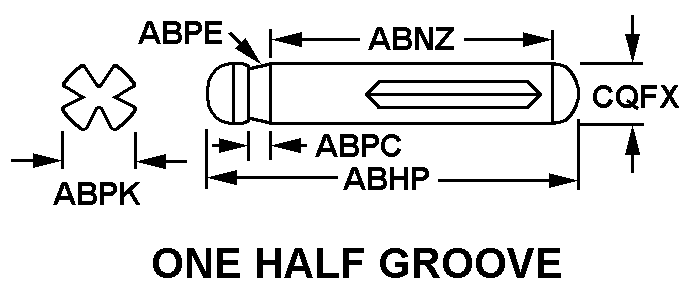

ONE HALF GROOVE
Cross Reference | NSN 5315-00-204-8538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3154844-00 | 90536 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN |
| 3154844-00 | 01749 | UNISYS CORPCOMPUTER SYSTEMS DIV |
Technical Data | NSN 5315-00-204-8538
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ONE HALF GROOVE |
| OVERALL LENGTH | 0.375 INCHES NOMINAL |
| EFFECTIVE LENGTH | 0.250 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.031 INCHES NOMINAL |
| UNDERCUT RADIUS | 0.078 INCHES NOMINAL |
| INTERMEDIATE DIAMETER | 0.093 INCHES NOMINAL |
| PIN SMALL END DIAMETER | 0.093 INCHES NOMINAL |
| FIRST END STYLE | ROUND |
| FIRST END OUTER RADIUS | 0.109 INCHES MINIMUM AND 0.141 INCHES MAXIMUM |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
