NSN 5315-00-233-9443
Part Details | NAIL
5315-00-233-9443 A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails."
Alternate Parts: 5315-00-233-9443, 00-233-9443, 5315002339443, 002339443
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-233-9443 | 29631 ( NAIL ) |
REFERENCE DRAWINGS & PICTURES
OFFSET

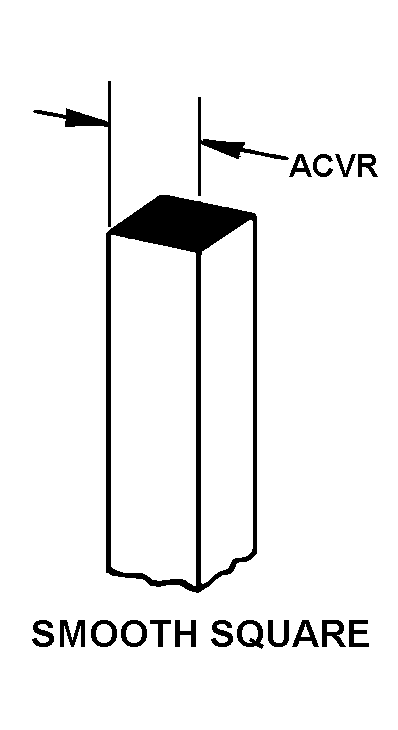

SMOOTH SQUARE

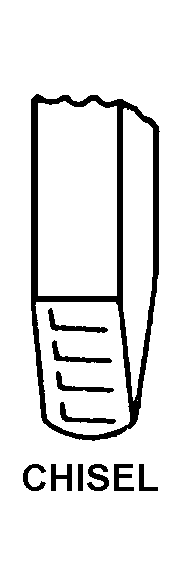

CHISEL
Cross Reference | NSN 5315-00-233-9443
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 5315-00-233-9443
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| SURFACE TREATMENT LOCATION | OVERALL |
| FABRICATION METHOD | FORGED |
| STERILIZED | NO |
| SHANK STYLE | SMOOTH SQUARE |
| SHANK WIDTH | 0.3125 INCHES NOMINAL |
| HEAD STYLE | 2 OFFSET |
| POINT STYLE | CHISEL |
| FASTENER LENGTH | 6.000 INCHES NOMINAL |
| DECORATIVE HEAD | NO |
