NSN 5320-00-209-1942
Part Details | PIN-RIVET
5320-00-209-1942 A metallic or nonmetallic item, headed at one end, with a cylindrically shaped shank which may be tapered, grooved, or threaded. A locking collar or sleeve may be provided to perform the same holding action as the clinching portion of a conventional rivet. The shank may include an external wrenching facility which breaks off at a predetermined applied torque.
Alternate Parts: HS715294, HS71-5-294, 612A154P1, HS715294, HS71-5-294, HS715294, HS71-5-294, HS715294, HS71-5-294, 5320-00-209-1942, 00-209-1942, 5320002091942, 002091942
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-209-1942 | 67165 ( PIN-RIVET ) |
REFERENCE DRAWINGS & PICTURES
FLUSH COUNTERSUNK

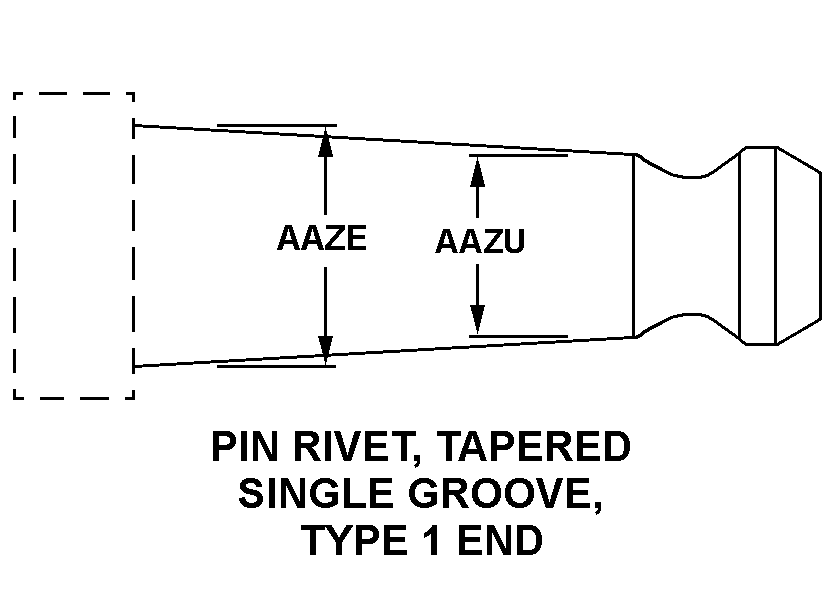

PIN RIVET, TAPERED SINGLE GROOVE, TYPE 1 END
Cross Reference | NSN 5320-00-209-1942
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HS71-5-294 | C4293 | ALCOA FASTENING SYSTEMSFAIRCHILDFASTENERS EUROPE - VSD GMBH |
| 612A154P1 | 07482 | GENERAL ELECTRIC COMPANYDBA GE |
| HS71-5-294 | 73197 | HI-SHEAR CORPORATION |
| HS71-5-294 | L4528 | LISI AEROSPACE CANADA CORPDIV HI SHEAR HOLDINGS INC |
| HS71-5-294 | R1120 | SATAIR A/S |
Technical Data | NSN 5320-00-209-1942
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.249 INCHES MINIMUM AND 0.254 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | PIN RIVET, TAPERED SINGLE GROOVE, TYPE 1 END |
| SHANK DIAMETER | 0.156 INCHES NOMINAL |
| GRIP LENGTH | 0.294 INCHES NOMINAL |
