NSN 5320-00-274-4315
Part Details | SOLID RIVET
5320-00-274-4315 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Alternate Parts: 17X99, 17X99, 16610J, 468D5, 692984, 692984, 17X99, RV7926, 692984, 11A2477, 7535508, 7373905, 3B5609, 17X99, 5320-00-274-4315, 00-274-4315, 5320002744315, 002744315
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-274-4315 | 00861 ( RIVET, SOLID ) |

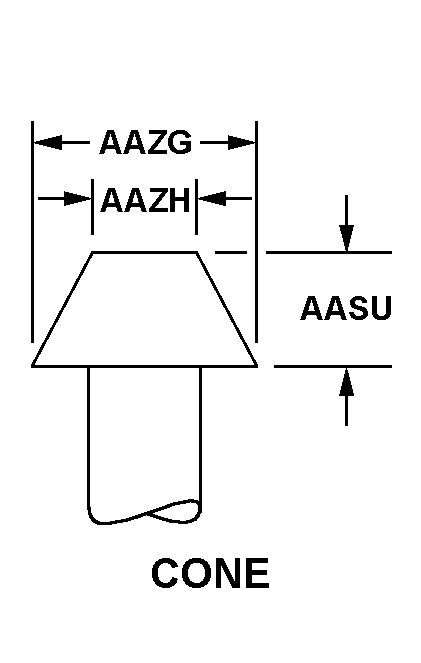

REFERENCE DRAWINGS & PICTURES
CONE
STRAIGHT
Cross Reference | NSN 5320-00-274-4315
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17X99 | 09136 | BAY CITY SHOVELS, INC |
| 17X99 | 19107 | DART TRUCK CO |
| 16610J | 56442 | DIAMOND REO TRUCK CO |
| 468D5 | 56442 | DIAMOND REO TRUCK CO |
| 692984 | 24617 | GENERAL MOTORS CORP |
| 692984 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 17X99 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| RV7926 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 692984 | 23862 | MILITARY VEHICLES OPNGENERAL MOTORS TRUCK AND BUS GROUP |
| 11A2477 | 95201 | NAPCO INTERNATIONAL LLC |
| 7535508 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 7373905 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 3B5609 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
| 17X99 | 65282 | WHITE MOTOR CORP |
Technical Data | NSN 5320-00-274-4315
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | CONE |
| HEAD HEIGHT | 0.312 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.938 INCHES NOMINAL |
| HEAD MINOR DIAMETER | 0.883 INCHES NOMINAL |
| SHANK STYLE | STRAIGHT |
| FASTENER LENGTH | 3.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.555 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| SPECIAL FEATURES | 0.031 BY 45 DEG CHAMFER UNDERHEAD |
