NSN 5325-00-103-9858
Part Details | PUSH BUTTON FASTENER STUD
5325-00-103-9858 A metal fastening device having retractable engaging prong(s) or engaging rings actuated by a spring loaded button designed to mate with a SOCKET, PUSH BUTTON FASTENER. May include a clinch plate.
Alternate Parts: PL60012, PL600-1-2, PL60012, PL600-1-2, 5325-00-103-9858, 00-103-9858, 5325001039858, 001039858
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 14, 1968 | 00-103-9858 | 17969 ( STUD, PUSH BUTTON FASTENER ) |

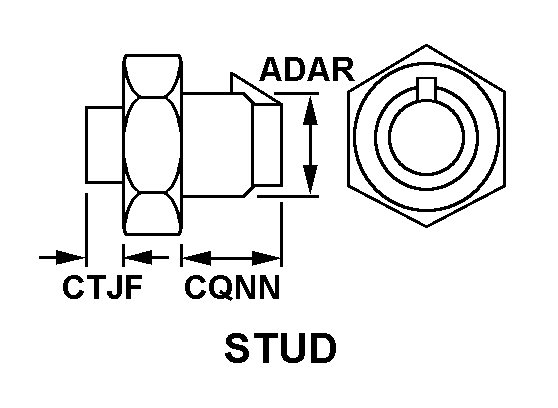

REFERENCE DRAWINGS & PICTURES
STUD
Cross Reference | NSN 5325-00-103-9858
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PL600-1-2 | 0HDW7 | HUCK INTERNATIONAL, INC.DBA ARCONIC FASTENING SYSTEMS AND |
| PL600-1-2 | 97928 | HUCK INTL INC |
Technical Data | NSN 5325-00-103-9858
| Characteristic | Specifications |
|---|---|
| STUD RETENTION METHOD | CLINCH |
| PUSH BUTTON STUD STYLE | 0 STUD |
| BODY OUTSIDE DIAMETER | 0.500 INCHES MAXIMUM |
| BODY FLANGE OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| STUD BODY LENGTH | 0.860 INCHES NOMINAL |
