NSN 5325-00-176-0693
Part Details | METALLIC GROMMET
5325-00-176-0693 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Alternate Parts: 600052, 60-005-2, 5325-00-176-0693, 00-176-0693, 5325001760693, 001760693
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 31, 1969 | 00-176-0693 | 06314 ( GROMMET, METALLIC ) |
REFERENCE DRAWINGS & PICTURES
FLAT
STRAIGHT ROUND TYPE

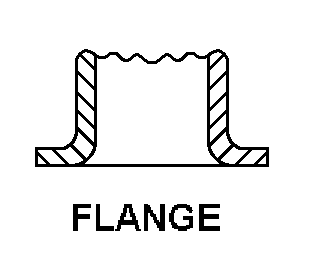

FLANGE
Cross Reference | NSN 5325-00-176-0693
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60-005-2 | 97499 | BELL HELICOPTER TEXTRON INC.DBA BELL HELICOPTER |
Technical Data | NSN 5325-00-176-0693
| Characteristic | Specifications |
|---|---|
| BARREL STYLE | STRAIGHT ROUND TYPE |
| BARREL HEIGHT | 0.300 INCHES NOMINAL |
| BARREL OUTSIDE DIAMETER | 0.232 INCHES NOMINAL |
| FLANGE STYLE | FLANGE |
| FLANGE OUTSIDE DIAMETER | 0.625 INCHES NOMINAL |
| WASHER STYLE | FLAT |
